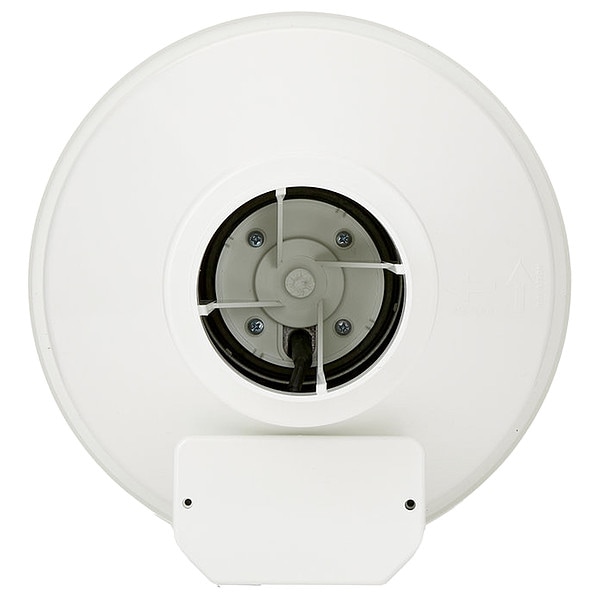

Fantech Plastic 10"D, 10.6"H, 10"W Inline Duct Fan 56200 - main

Plastic 10"D, 10.6"H, 10"W Inline Duct Fan

  • Mfr # 56200

  • Zoro # G4718122

product price: $176.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Plastic
Fits Duct Dia.
4 in
Voltage
120v
Max. Amps
0.72 A
Max. Wattage
80
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
56200
Zoro #
G4718122
UPC #
650737011109
Country of Origin
Multiple

Dimensions

Fits Duct Dia.
4 in
Housing Dia.
9 1/2 in
Length
9 5/8 in
Height
9 5/8 in
Inlet and Outlet Dia.
4 in
Overall Width
10 in
Overall Height
10 5/8 in
Duct Diameter
4 in
Overall Diameter
10 in

Details

Item
In-Line Duct Fan
Housing Material
Plastic
Voltage
120v
Max. Amps
0.72 A
Max. Wattage
80
Number of Speeds
1
Motor RPM
2900
CFM @ 1.500-In. SP
4 cfm
Motor Enclosure
External Rotor
Speed Control
Yes / WC15 speed control
Green Certification or Other Recognition
ENERGY STAR
Includes
Mounting Bracket
Standards
CSA, HVI, UL
CFM @ 1.000-In. SP
95 cfm
CFM @ 0.200-In. SP
168 cfm
CFM @ 0.100-In. SP
167
CFM @ 0.600-In. SP
128 cfm
CFM @ Duct
167 cfm
CFM @ 0.125-In. SP
154 cfm
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
CFM @ 0.400-In. SP
150 cfm
CFM @ 0.800-In. SP
112 cfm
Hz
60
CFM @ 0.750-In. SP
92 cfm
CFM @ 0.250-In. SP
148 cfm
Housing Finish
Molded Plastic
CFM @ 0.500-In. SP
118 cfm
Phase
1
CFM @ 0.375-In. SP
135 cfm
Mounting Position
Horizontal or Vertical
CFM @ 0.450-In. SP
126 cfm
CFM @ 0.000-In. SP
187
Bearing Type
Ball Bearing
Max. Inlet Temp.
140 Degrees F
Speed Controllable
Yes
Motor Speed
2,900 RPM
High-Efficiency Motor
No
Application
General Purpose
For Fan Type
Centrifugal Duct Fan
Maximum Inlet Air Temperature
140 Degrees F
Motor Output Power
80 W
Nameplate Voltage
120V AC
Mounting Orientation
Horizontal or Vertical
Motor IP Rating
IP44
Speed Control Included
No
Airflow @ 0.000 in SP
180 cfm

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 180 cfm, Duct Diameter 4 in, Motor Output Power 80 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 10 in, Overall Height 10 5/8 in, Overall Width 10 in, Application General Purpose, High-Efficiency Motor No, Housing Material Plastic, Motor Speed 2,900 RPM, Includes Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F, Speed Control Included No

Restrictions

This item has been restricted from sale in the following states: NJ
