  9. Steel 13"D, 15.1"H, 8"W Inline Duct Fan

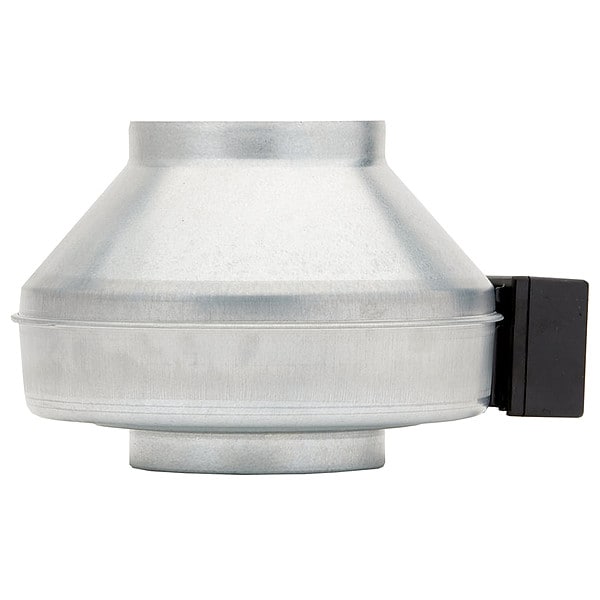

Fantech Steel 13"D, 15.1"H, 8"W Inline Duct Fan 56209 - main

Steel 13"D, 15.1"H, 8"W Inline Duct Fan

  • Mfr # 56209

  • Zoro # G4712915

product price: $289.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Galvanized Steel
Fits Duct Dia.
6 in
Voltage
120v
Max. Amps
1.48 A
Max. Wattage
153
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
56209
Zoro #
G4712915
UPC #
650737480653
Country of Origin
Multiple

Dimensions

Fits Duct Dia.
6 in
Housing Dia.
13 1/8 in
Length
13 1/8 in
Inlet and Outlet Dia.
6 in
Height
8 5/8 in
Overall Height
15 1/8 in
Overall Width
8 in
Duct Diameter
6 in
Overall Diameter
13 1/8 in

Details

Item
In-Line Duct Fan
Housing Material
Galvanized Steel
Voltage
120v
Max. Amps
1.48 A
Max. Wattage
153
Number of Speeds
1
Motor RPM
2900
Hz
60
CFM @ 0.200-In. SP
450 cfm
CFM @ 0.250-In. SP
439 cfm
CFM @ 0.400-In. SP
375 cfm
CFM @ 0.125-In. SP
462 cfm
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
ENERGY STAR
CFM @ 0.450-In. SP
353 cfm
CFM @ 0.600-In. SP
320 cfm
Housing Finish
G90
CFM @ 1.200-In. SP
243 cfm
Phase
1
CFM @ 1.000-In. SP
289 cfm
CFM @ 0.750-In. SP
299 cfm
Includes
Mounting Bracket
Motor Enclosure
External Rotor
CFM @ 0.800-In. SP
265 cfm
CFM @ 0.000-In. SP
483
CFM @ 1.500-In. SP
201 cfm
CFM @ 0.375-In. SP
412 cfm
Speed Control
Yes / WC15 speed control
Bearing Type
Ball Bearing
CFM @ 0.100-In. SP
473
Mounting Position
Horizontal or Vertical
Max. Inlet Temp.
140 Degrees F
Standards
AMCA, cULus, cCSAus, Energy Star, HVI
CFM @ 0.500-In. SP
389 cfm
CFM @ Duct
483 cfm
Nameplate Voltage
120V AC
Mounting Orientation
Horizontal or Vertical
Motor IP Rating
IP44
Application
General Purpose
High-Efficiency Motor
No
Speed Control Included
No
Maximum Inlet Air Temperature
140 Degrees F
For Fan Type
Centrifugal Duct Fan
Airflow @ 0.000 in SP
483 cfm
Speed Controllable
Yes
Motor Output Power
150 W
Motor Speed
2,900 RPM

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 483 cfm, Duct Diameter 6 in, Motor Output Power 150 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 13 1/8 in, Overall Height 15 1/8 in, Overall Width 8 in, Application General Purpose, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 2,900 RPM, Includes Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F, Speed Control Included No
