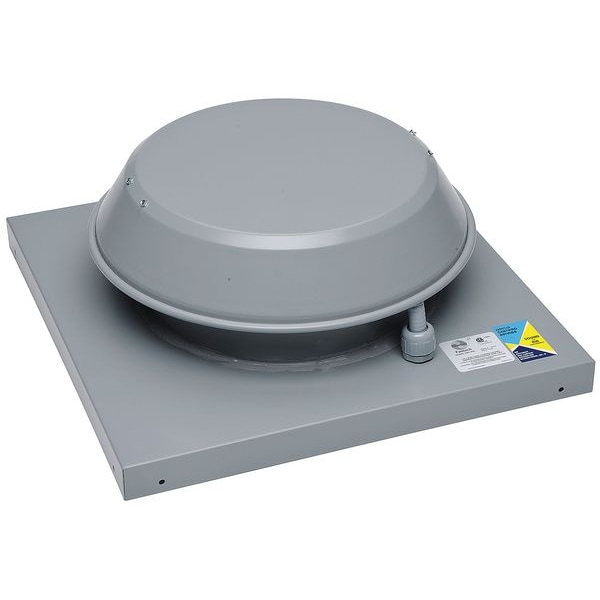

Steel 15.5"Dia, 8"H Roof Fan w.Motor

  • Mfr # 56270

  • Zoro # G7497341

product price:
$
365.99
/ea
Free Shipping & Returns

Key Features

Item - Roof Ventilators
Downblast Ventilator
Drive Package With Motor Included
Yes
Duty Rating - Roof Ventilators
Standard
Drive Type - Roof Ventilators
Direct Drive
Mounting Location - Roof Ventilators
Roof, Wall
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
56270
Zoro #
G7497341
UPC #
650737420659
Country of Origin
Czechia

Dimensions

Base Size - Roof Ventilators
15-1/2 in x 15-1/2 in
Wheel Dia.
7 1/2 in
Base Width
15 1/2 in
Dimension D
15 1/2 in
Base Height
1 1/2 in
Dimension B
6 1/4 in
Base Length
15 1/2 in
Dimension A
13 15/16 in
Base Square Size - Roof Ventilators
15-1/2" x 15-1/2"
Dimension E
1 1/2 in
Dimension C
6 in
Overall Height
7 3/4 in
Damper Size
3 1/8 x 6 in
Overall Diameter
15 1/2 in
Hood Width
13.9 in
Cutout Length
15.5 in
Housing Length
13.9 in
Cutout Size
15.5 in L x 15.5 in W
Overall Length
15 1/2 in
Overall Width
15 1/2 in
Wheel Diameter
7 1/2 in
Housing Width
13.9 in
Wire Rope Length
15 1/2 in
Length
15 1/2 in

Details

Item - Roof Ventilators
Downblast Ventilator
Drive Package With Motor Included
Yes
Duty Rating - Roof Ventilators
Standard
Drive Type - Roof Ventilators
Direct Drive
Mounting Location - Roof Ventilators
Roof, Wall
Number of Speeds
1
Voltage - Roof Ventilators
115V AC
CFM @ 0.000-In. SP
227
Motor Voltage
115
CFM @ 0.750-In. SP
134
Drive Package Included
Yes
Max. Operating Amps
0.8
Item
Centrifugal Downblast Roof Exhaust Fan
Phase
1
CFM @ 0.125-In. SP
213
Wheel Material
Plastic
CFM @ 0.250-In. SP
199
RPM
2700
Agency Compliance
AMCA, cCSAus
Drive Type
Direct Drive
CFM @ 1.000-In. SP
106
CFM @ 0.500-In. SP
169
Hz
60
Mounting Location
Roof, Exterior Wall
CFM @ 1.250-In. SP
80
Max. Inlet Temp.
140 Degrees
Speed Controllable
Variable Speed
Wheel Type
Backward Inclined
CFM @ 1.500-In. SP
51
CFM @ 0.375-In. SP
184
Assembled/Unassembled
Assembled
Housing Material
Steel
Motor Type
Permanent Split Capacitor
Standards
AMCA Rated, cULus
Max. BHP
0.02/0.03/0.06 hp
Bearing Type
Permanently Sealed, Self-Lubricating Ball Bearing
High-Efficiency Motor
No
Wheel Finish
Powder Coated
Frequency
60 Hz
Compatible Curb Manufacturer Part Number
49580
Compatible Speed Control
411102
Housing Finish
Powder Coated
Weight
9.7 lb
Application
Commercial, Residential
Exhaust Airflow @ 0.125 in SP
213 cfm
Base Shape
Square
For High-Static Pressure Applications
No
Exhaust Airflow @ 0.375 in SP
184 cfm
Mount Type
Roof Curb
Maximum Ambient Temperature
140 Degrees F
Assembly
Assembled
Includes Drive Package
Yes
Wattage
87 W
Current
0.80 A
Maximum Fan Speed
2,451 RPM
Includes Motor
Yes
Nameplate Voltage
115V AC
Motor Horsepower
3/25 hp
Maximum Inlet Air Temperature
140 Degrees F
Safety Features
Built-In Thermal Overload Protection with Automatic Reset
Maximum Static Pressure
1 1/2 in wc
Features
Excellent Heat Dissipation for Long Motor Life, Suitable for Airstream Temperatures of Up to 140 Degrees F
Brake Horsepower
1/50 hp
For Air Type
Clean Air
Exhaust Airflow @ 0.500 in SP
169 cfm
Airflow @ 0.000 in SP
227 cfm
Exhaust Airflow @ 0.250 in SP
199 cfm
Exhaust Airflow @ 0.000 in SP
227 cfm
Series
REC

Description

Centrifugal Downblast Roof Exhaust Fan, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 7 1/2 in, Base Diameter Not Applicable, Base Length 15 1/2 in, Base Width 15 1/2 in, Base Shape Square, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 3/25 hp, Exhaust Airflow @ 0.000 in SP 227 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof and Wall
