  9. Draft Inducer, 115, Plastic, 5 41/64 in W, 10 11/16 in H, 1.0/2.0 Inlet and Outlet Dia.

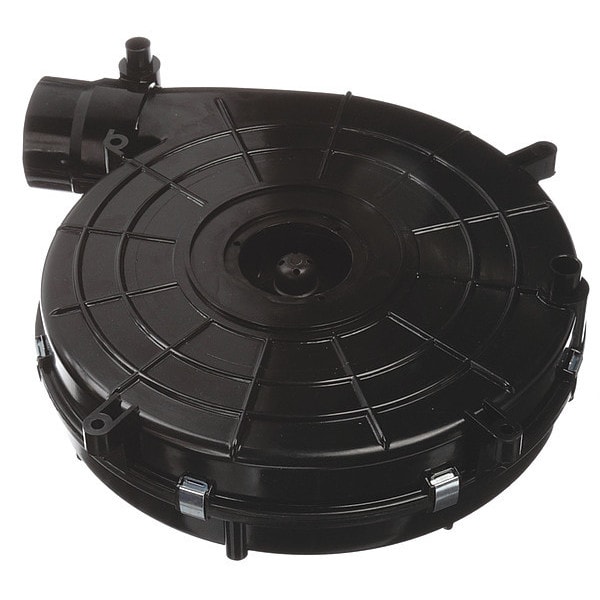

Fasco Draft Inducer, 115, Plastic, 5 41/64 in W, 10 11/16 in H, 1.0/2.0 Inlet and Outlet Dia. A171 - main

Draft Inducer, 115, Plastic, 5 41/64 in W, 10 11/16 in H, 1.0/2.0 Inlet and Outlet Dia.

  • Mfr # A171

  • Zoro # G8518666

product price: $282.99
/ea
Free Shipping & Returns

Key Features

Inlet and Outlet Dia. (In.)
1.0/2.0
Voltage
115
Depth (In.)
11 19/32 in
Construction Material
Plastic
Height (In.)
10 11/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A171
Zoro #
G8518666
UPC #
663001031604
Country of Origin
Mexico

Dimensions

Inlet and Outlet Dia. (In.)
1.0/2.0
Depth (In.)
11 19/32 in
Height (In.)
10 11/16 in
Width (In.)
5 41/64 in
Overall Depth
11 1/2 in
Wheel Diameter
8 in
Overall Height
10 5/8 in
Inlet Diameter
2 3/4 in
Overall Width
5 5/8 in
Outlet Diameter
2 1/4 in

Details

Item
Draft Inducer
Voltage
115
Construction Material
Plastic
For Use With Mfr. Model Number
1011412, 7062-4201, 7062-4274, 7062-4549, 7062-4705, 7062-4783
Fits Brand
ICP
Replaces
Fasco 70624783, 70624705, 70624274, 70624201, 70624549, ICP 1010491, 1011096, 1011410, 1010527, ICP 1011412
Agency Compliance
CSA Motor Only, UL
Application
Furnaces
CFM @ 0.000-In. SP
100
CFM @ 1.000-In. SP
89
CFM @ 0.700-In. SP
92
CFM @ 0.500-In. SP
65
CFM @ 1.40-In. SP
83
Current
0.7 A
Standards
CSA Certified, UL Listed
Replacement For Manufacturer Model Number
1010491, 1010527, 1011096, 1011410, 1011412, 70624201, 70624274, 70624549, 70624705, 70624783
Housing Material
Plastic
OEM Replacement
Yes
Blower Type
Induced Draft Blower
For Appliance Type
Furnaces
Phase
1
Maximum Static Pressure
3 7/8 in wc
Nameplate Voltage
115V AC
Motor Type
Permanent Split Capacitor
Wheel Material
Polypropylene
Includes Motor
Yes
Outlet Shape
Round
For Use With
1011412, 7062-4201, 7062-4274, 7062-4549, 7062-4705, 7062-4783, ICP
Maximum Motor Speed
3,450 RPM
Maximum Inlet Air Temperature
40 Degrees C
Airflow @ 0.000 in SP
90 cfm
Electrical Connection
Wire Leads
Compatible with Brand
Intercity Products
Motor Insulation Class
B
Maximum Fan Speed
3,400 RPM
Frequency
60 Hz
Wheel Type
Backward-Curved

Description

Draft Inducer, Application Furnaces, For Appliance Type Furnaces, Inlet Diameter 2 3/4 in, Outlet Diameter 2 1/4 in, Compatible with Brand Intercity Products, Replacement For Manufacturer Model Number 1010491, 1010527, 1011096, 1011410, 1011412, 70624201, 70624274, 70624549, 70624705, 70624783, Nameplate Voltage 115V AC, Phase 1, Current 0.7 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM
