  9. Draft Inducer, 115, Plastic, 6 13/16 in W, 8 13/62 in H, 2.0/1.8 Inlet and Outlet Dia.

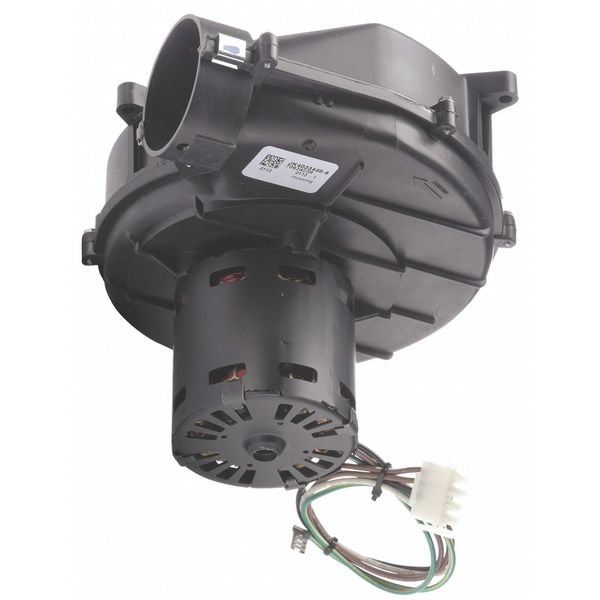

Fasco Draft Inducer, 115, Plastic, 6 13/16 in W, 8 13/62 in H, 2.0/1.8 Inlet and Outlet Dia. A136 - main

Draft Inducer, 115, Plastic, 6 13/16 in W, 8 13/62 in H, 2.0/1.8 Inlet and Outlet Dia.

  • Mfr # A136

  • Zoro # G8518711

product price: $338.99
/ea
Free Shipping & Returns

Key Features

Inlet and Outlet Dia. (In.)
2.0/1.8
Voltage
115
Depth (In.)
7 45/64 in
Construction Material
Plastic
Height (In.)
8 13/62 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
A136
Zoro #
G8518711
UPC #
663001021162
Country of Origin
Mexico

Dimensions

Inlet and Outlet Dia. (In.)
2.0/1.8
Depth (In.)
7 45/64 in
Height (In.)
8 13/62 in
Width (In.)
6 13/16 in
Inlet Diameter
2 in
Outlet Diameter
1 3/4 in
Overall Height
8 1/8 in
Overall Width
6 3/4 in
Overall Depth
7 5/8 in
Wheel Diameter
4 5/8 in

Details

Item
Draft Inducer
Voltage
115
Construction Material
Plastic
Fits Brand
Rheem
Replaces
Alltemp (Rotom) FB-RFB136, Fasco 70624537, Fasco70623861, 70625177, Rheem 70-24033-01
Agency Compliance
CSA Motor Only, UL
Application
Furnaces
CFM @ 0.700-In. SP
72
CFM @ 1.40-In. SP
54
For Use With Mfr. Model Number
7062-3861
CFM @ 0.000-In. SP
82
CFM @ 1.000-In. SP
63
CFM @ 0.500-In. SP
73
Current
0.75 A
Standards
CSA Certified
Maximum Static Pressure
4 in wc
Nameplate Voltage
115V AC
Housing Material
Plastic
For Use With
7062-3861, Rheem
Includes Motor
Yes
Maximum Motor Speed
3,450 RPM
Wheel Type
Forward-Curved
Outlet Shape
Round
Maximum Inlet Air Temperature
40 Degrees C
Blower Type
Induced Draft Blower
Electrical Connection
Wire Leads
OEM Replacement
Yes
Frequency
60 Hz
Motor Type
Permanent Split Capacitor
Phase
1
Maximum Fan Speed
3,400 RPM
Replacement For Manufacturer Model Number
70-24033-01, 70623861, 70624537, 70625177, FB-RFB136
Motor Insulation Class
B
Wheel Material
Polypropylene
Airflow @ 0.000 in SP
95 cfm
Compatible with Brand
Rheem, RUUD
For Appliance Type
Furnaces

Description

Draft Inducer, Application Furnaces, For Appliance Type Furnaces, Inlet Diameter 2 in, Outlet Diameter 1 3/4 in, Compatible with Brand Rheem, RUUD, Replacement For Manufacturer Model Number 70-24033-01, 70623861, 70624537, 70625177, FB-RFB136, Nameplate Voltage 115V AC, Phase 1, Current 0.75 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM, Maximum Motor Speed 3,450 RPM
