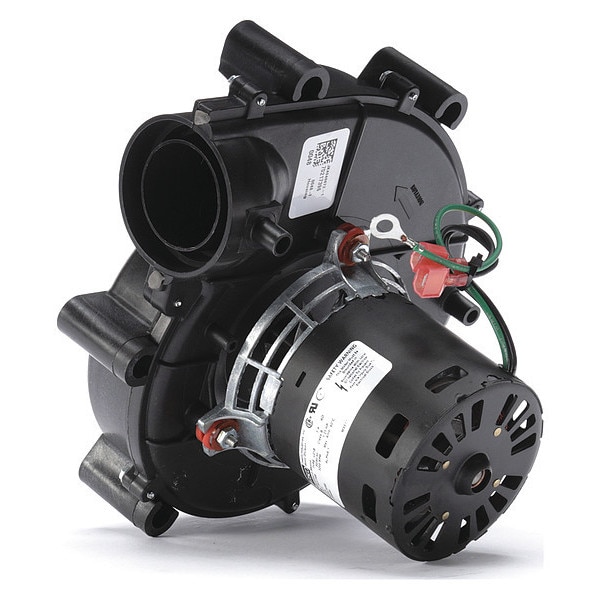

Induced Draft Furnace Blower, 115, Plastic, 9 in W, 7 7/8 in H

Mfr # A088
Zoro # G7586573

224.99

Free Shipping & Returns

Key Features

Type

Replacement

Voltage

115

Depth (In.)

6 1/2 in

1/25 hp

Construction Material

Plastic

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: A088
Zoro #: G7586573
UPC #: 663001021018
Country of Origin: Mexico

Dimensions

Depth (In.): 6 1/2 in
Height (In.): 7 7/8 in
Width (In.): 9 in
Overall Depth: 6 1/2 in
Overall Width: 9 in
Outlet Diameter: 2 1/2 in
Overall Height: 7 7/8 in
Wheel Diameter: 4 3/4 in
Inlet Diameter: 3 in

Details

Item: Induced Draft Furnace Blower
Type: Replacement
Voltage: 115
HP: 1/25 hp
Construction Material: Plastic
Amps: 1.3
Remarks: Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions
For Use With Mfr. Model Number: 2940-391
Fits Brand: Evcon/York
Replaces: Evcon/York 2940-391, Fasco70215478
Agency Compliance: CSA, UL
Application: Furnaces
Watts: 93 W
CFM @ 0.500-In. SP: 80
CFM @ 1.000-In. SP: 58
CFM @ 0.700-In. SP: 73
CFM @ 0.000-In. SP: 72
CFM @ 1.40-In. SP: 35
Wheel Material: Polypropylene
Electrical Connection: Wire Leads
Standards: CSA Certified, UL Listed
Power Consumption: 93 W
For Use With: 2940-391, Evcon/York
Maximum Fan Speed: 3,400 RPM
Wheel Type: Forward-Curved
Maximum Motor Speed: 3,200 RPM
Motor Insulation Class: B
Motor Type: Shaded Pole
Nameplate Voltage: 115V AC
For Fuel Type: Natural Gas
For Appliance Type: Gas Furnaces
Includes Motor: Yes
Blower Type: Induced Draft Blower
Maximum Motor Horsepower: 1/25 hp
OEM Replacement: Yes
Phase: 1
Compatible with Brand: Evcon, York
Current: 1.3 A
Housing Material: Plastic
Outlet Shape: Round
Frequency: 50/60 Hz
Maximum Inlet Air Temperature: 40 Degrees C
Replacement For Manufacturer Model Number: 2940-391, 70215478

Description

Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Gas Furnaces, Inlet Diameter 3 in, Outlet Diameter 2 1/2 in, Compatible with Brand Evcon, York, Replacement For Manufacturer Model Number 2940-391, 70215478, Nameplate Voltage 115V AC, Phase 1, Current 1.3 A, Frequency 50/60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM, Maximum Motor Speed 3,200 RPM
