  9. Draft Inducer Blower, 115, Aluminum Steel, 10 5/8 in W, 8 1/2 in H

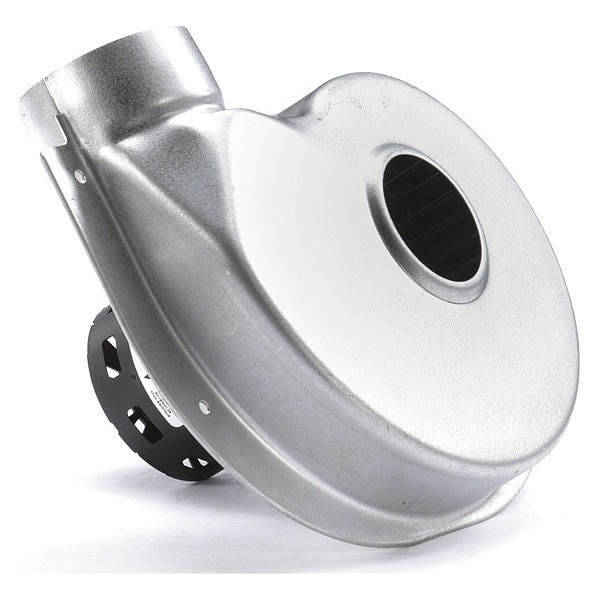

Fasco Draft Inducer Blower, 115, Aluminum Steel, 10 5/8 in W, 8 1/2 in H A134 - main

Draft Inducer Blower, 115, Aluminum Steel, 10 5/8 in W, 8 1/2 in H

  • Mfr # A134

  • Zoro # G7456163

product price: $167.99
/ea
Free Shipping & Returns

Key Features

Type
Replacement
Voltage
115
Depth (In.)
6 3/4 in
HP
1/25 hp
Construction Material
Aluminum Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A134
Zoro #
G7456163
UPC #
663001021148
Country of Origin
Mexico

Dimensions

Depth (In.)
6 3/4 in
Height (In.)
8 1/2 in
Vent Pipe Dia. (In.)
3.3"
Width (In.)
10 5/8 in
Overall Height
8 1/2 in
Overall Width
10 5/8 in
Overall Depth
6 3/4 in
Outlet Diameter
3 in
Inlet Diameter
2 1/4 in
Wheel Diameter
4 5/8 in

Details

Item
Draft Inducer Blower
Type
Replacement
Voltage
115
HP
1/25 hp
Construction Material
Aluminum Steel
Amps
1.5A
Includes
23" Leads with Pin Terminals
Remarks
Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions
For Use With Mfr. Model Number
1708-607
Fits Brand
ICP
Replaces
Alltemp (Rotom) FB-RFB134, Fasco 70218736, 70218735, Fasco70219918, ICP 1708-607, 1708-607P
Agency Compliance
CSA, UL
Application
Furnaces
Watts
124 W
Number of Speeds
1
RPM
3060
Bearings
Ball
Enclosure
Open
Class
B
Overload Protection
Thermal
CFM @ 1.40-In. SP
55
CFM @ 0.700-In. SP
78
CFM @ 1.000-In. SP
74
CFM @ 0.500-In. SP
80
CFM @ 0.000-In. SP
93
Motor Type
Shaded Pole
Includes Motor
Yes
OEM Replacement
Yes
Compatible with Brand
Intercity Products
For Appliance Type
Gas Furnaces
Maximum Static Pressure
2 1/4 in wc
Airflow @ 0.000 in SP
105 cfm
Phase
1
Power Consumption
124 W
Blower Type
Induced Draft Blower
Electrical Connection
Wire Leads
Maximum Inlet Air Temperature
40 Degrees C
Maximum Motor Speed
3,060 RPM
Wheel Material
Steel
Maximum Fan Speed
3,400 RPM
Outlet Shape
Round
Motor Insulation Class
B
Nameplate Voltage
115V AC
Maximum Motor Horsepower
1/25 hp
For Fuel Type
Natural Gas
Standards
CSA Certified, UL Listed
For Use With
1708-607, ICP
Wheel Type
Forward-Curved
Current
1.5 A
Replacement For Manufacturer Model Number
1708-607, 1708-607P, 70218735, 70218736, 70219918, FB-RFB134
Housing Material
Aluminum Steel
Frequency
60 Hz

Description

Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Gas Furnaces, Inlet Diameter 2 1/4 in, Outlet Diameter 3 in, Compatible with Brand Intercity Products, Replacement For Manufacturer Model Number 1708-607, 1708-607P, 70218735, 70218736, 70219918, FB-RFB134, Nameplate Voltage 115V AC, Phase 1, Current 1.5 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM
