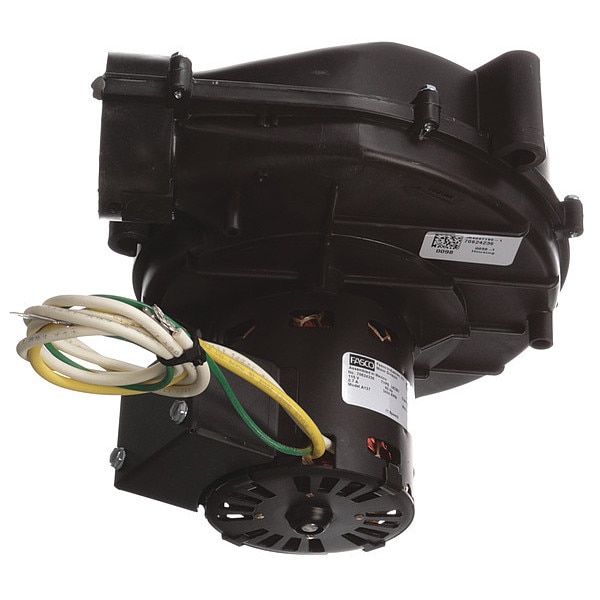

Draft Inducer Blower, 115, Plastic, 6 13/32 in W, 9 7/64 in H, 2.0/2.15" Inlet and Outlet Dia.

Mfr # A137
Zoro # G8518736

264.99

Free Shipping & Returns

Key Features

Inlet and Outlet Dia. (In.)

2.0/2.15"

Type

Replacement

Voltage

115

Depth (In.)

7 45/64 in

Construction Material

Plastic

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: A137
Zoro #: G8518736
UPC #: 696735340780
Country of Origin: Mexico

Dimensions

Inlet and Outlet Dia. (In.): 2.0/2.15"
Depth (In.): 7 45/64 in
Height (In.): 9 7/64 in
Vent Pipe Dia. (In.): 3.3"
Width (In.): 6 13/32 in
Outlet Diameter: 2 1/8 in
Overall Width: 6 3/8 in
Inlet Diameter: 2 in
Wheel Diameter: 4 5/8 in
Overall Height: 9 in
Overall Depth: 7 5/8 in

Details

Item: Draft Inducer
Type: Replacement
Voltage: 115
Construction Material: Plastic
Amps: 0.7A
For Use With Mfr. Model Number: 024-25057-000, 7062-2442, 7062-3484
Fits Brand: York
Replaces: Alltemp (Rotom) FB-RFB137, Fasco 70622442, 70623342, 70623484, 70623769, 70624536, York 024-25007-000, 024-25007-700, 024-25057-000, 024-25057-700
Agency Compliance: CSA Motor Only, UL
Application: Furnaces
Number of Speeds: 1
RPM: 3450
Bearings: Sleeve
Enclosure: Open
Class: B
Overload Protection: Thermal
CFM @ 0.000-In. SP: 77
CFM @ 0.700-In. SP: 65
CFM @ 1.000-In. SP: 57
CFM @ 1.40-In. SP: 53
CFM @ 0.500-In. SP: 68
Motor Type: Permanent Split Capacitor
For Use With: 024-25057-000, 7062-2442, 7062-3484, York
Maximum Inlet Air Temperature: 40 Degrees C
Current: 0.7 A
Housing Material: Plastic
Maximum Fan Speed: 3,400 RPM
Blower Type: Induced Draft Blower
Frequency: 60 Hz
For Appliance Type: Furnaces
Phase: 1
Includes Motor: Yes
Replacement For Manufacturer Model Number: 024-25007-000, 024-25007-700, 024-25057-000, 024-25057-700, 70622442, 70623342, 70623484, 70623769, 7062453, FB-RFB137
Motor Insulation Class: B
Compatible with Brand: York
Electrical Connection: Wire Leads
OEM Replacement: Yes
Standards: CSA Certified
Outlet Shape: Round
Wheel Material: Polypropylene
Maximum Motor Speed: 3,450 RPM
Nameplate Voltage: 115V AC
Wheel Type: Backward-Curved
Product Type: Draft Inducer

Description

Draft Inducer, Application Furnaces, For Appliance Type Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 1/8 in, Compatible with Brand York, Replacement For Manufacturer Model Number 024-25007-000, 024-25007-700, 024-25057-000, 024-25057-700, 70622442, 70623342, 70623484, 70623769, 7062453, FB-RFB137, Nameplate Voltage 115V AC, Phase 1, Current 0.7 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM
