Shop All 3.3 Inch Diameter Motors
Fasco

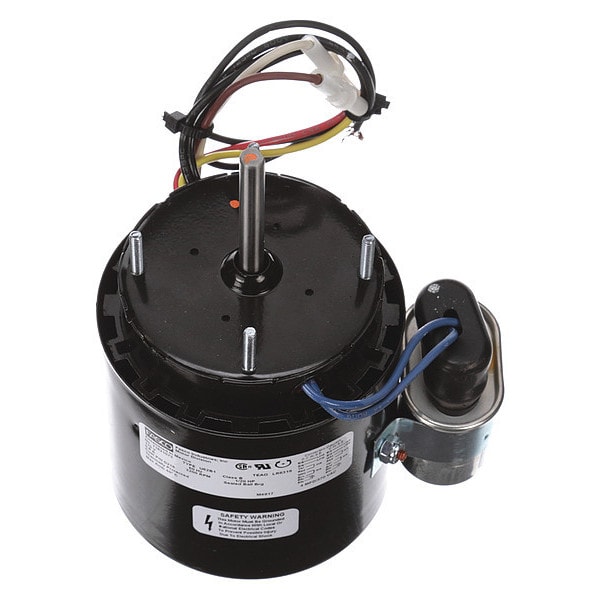

HVAC Motor, 1/20 HP, 3200 rpm, 115V, 3.3

product price: $277.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 3,200
  • Motor Enclosure Design Totally Enclosed Air-Over
  • Number of Speeds 1
  • HP 1/20
See all product information

Product Information

Dimensions

Length Less Shaft 4 11/16 in
Body Dia. 3 5/16 in
Shaft Length 2 1/4 in
Shaft Dia. 5/16 in
Bolt Circle Dia. 2 7/8 in
Overall Length 6 3/4 in
Lead Length 12 in
Stud Size #8-32

Details

Voltage 115V AC
Nameplate RPM 3,200
Motor Enclosure Design Totally Enclosed Air-Over
Number of Speeds 1
HP 1/20
RPM Range 3,001-3,600
Motor Mounting Type Stud
Item Direct Drive Blower Motor
Hz 60 Hz
Phase Single
Full Load Amps 0.8 A
Number of Shafts 1
Motor Shaft Rotation CW/CCW
No. of Speeds 1
Motor Design Permanent Split Capacitor
Motor Application HVAC/R
Motor Shaft Design Flat
Motor Thermal Protection Auto
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings Ball
Stud/Base Mtg. Pattern 2-7/8 in x 2-7/8 in
Max. Ambient Temp. 40 Degrees C
Frame 3.3
Motor Sub Application Direct Drive Fan/Blower
Includes 4 MFD 370VAC Capacitor
Standards CSA Certified, UL Recognized
Duty Continuous
Mounting Pattern 2-7/8 x 2-7/8
Motor Service Factor 1
Mounting Stud Location 4/Shaft End
Application HVAC/R
Capacitor Required Included
Ins. Class B
Weight 5 lb
Mounting Holes (4) #8-32
Motor Mounting Position All Angle
Usable @ 208V No
Usable @ 200V No
Mounting Stud Pattern 2 7/8 in x 2 7/8 in
Conduit Box Position F2
Motor Frame Material Steel
Mounting Stud

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/20 HP, Nameplate RPM 3,200, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.8 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle
