  11. HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3
Shop All 3.3 Inch Diameter Motors
Dayton

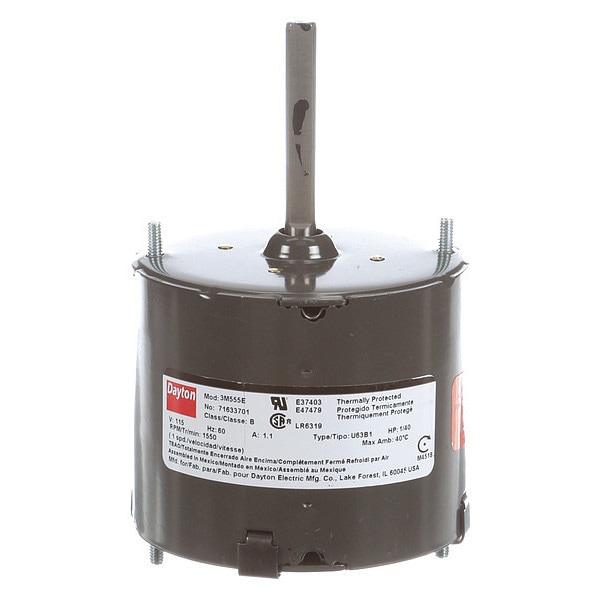

HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3

product price: $65.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Totally Enclosed Air-Over
  • Number of Speeds 1
  • HP 1/40
See all product information

Product Information

Dimensions

Shaft Length 2 1/4 in
Body Dia. 3 5/16 in
Length Less Shaft 3 3/8 in
Shaft Dia. 5/16 in
Cord Length 12 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Totally Enclosed Air-Over
Number of Speeds 1
HP 1/40
RPM Range 1,501-1,600
Frame 3.3
Motor Service Factor 1
Standards CSA Certified, UL Recognized
Motor Shaft Design Flat
Motor Thermal Protection Auto
Stud/Base Mtg. Pattern 2-7/8 in
Full Load Amps 1 A
Phase Single
Hz 60 Hz
Mounting Stud Location 2/Both Ends
Number of Shafts 1
Motor Mounting Type Stud
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Rotation CWSE
Item HVAC Motor
Motor Sub Application Direct Drive Fan/Blower
Max. Ambient Temp. 40 Degrees C
Motor Application HVAC/R
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Ins. Class B
Motor Design Shaded Pole
Duty Continuous
No. of Speeds 1
Motor Bearings Sleeve
Mounting Pattern 2-7/8
Capacitor Required No
Mounting Stud Pattern 2 7/8 in
Duty Cycle Continuous
Usable @ 208V No
Usable @ 200V No
Motor Mounting Position All Angle
Type OEM Replacement
Mounting Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
