  9. Induced Draft Furnace Blower, 115, Plastic, 9 in W, 9 1/2 in H

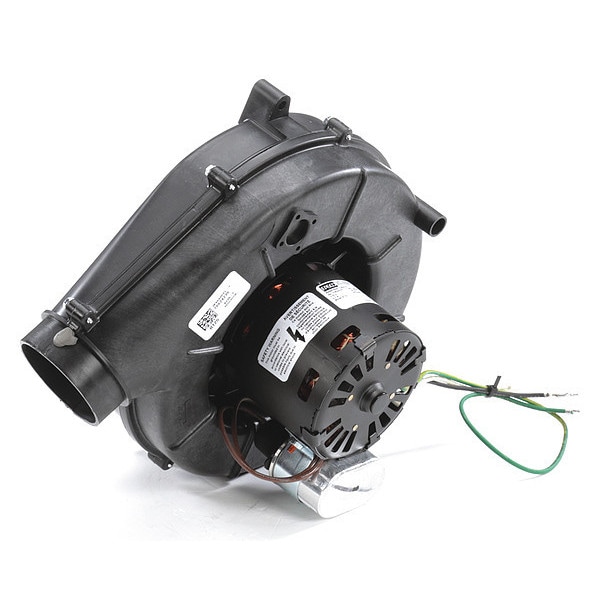

Fasco Induced Draft Furnace Blower, 115, Plastic, 9 in W, 9 1/2 in H A130 - main

Induced Draft Furnace Blower, 115, Plastic, 9 in W, 9 1/2 in H

  • Mfr # A130

  • Zoro # G5535101

product price: $289.99
/ea
Free Shipping & Returns

Key Features

Type
Replacement
Voltage
115
Depth (In.)
5 5/8 in
HP
1/20 hp
Construction Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A130
Zoro #
G5535101
UPC #
663001021094
Country of Origin
Mexico

Dimensions

Depth (In.)
5 5/8 in
Height (In.)
9 1/2 in
Width (In.)
9 in
Overall Width
9 in
Overall Depth
5 5/8 in
Overall Height
9 1/2 in
Inlet Diameter
2 in
Wheel Diameter
6 1/2 in
Outlet Diameter
2 3/8 in

Details

Item
Induced Draft Furnace Blower
Type
Replacement
Voltage
115
HP
1/20 hp
Construction Material
Plastic
Amps
0.7
Remarks
Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions
For Use With Mfr. Model Number
D330757P03
Fits Brand
Trane
Replaces
Alltemp (Rotom) FB-RFB130, Fasco 70623956, 70624004, 70624538, Trane D330757P03, X38040313037
Agency Compliance
CSA, UL
Application
Furnaces
Watts
73 W
CFM @ 0.000-In. SP
81
CFM @ 1.000-In. SP
72
CFM @ 1.40-In. SP
65
CFM @ 0.500-In. SP
78
CFM @ 0.700-In. SP
77
For Use With
D330757P03, Trane
For Fuel Type
Natural Gas
Replacement For Manufacturer Model Number
70623956, 70624004, 70624538, D330757P03, FB-RFB130, X38040313037
Phase
1
Electrical Connection
Wire Leads
OEM Replacement
Yes
Housing Material
Plastic
Blower Type
Induced Draft Blower
Standards
CSA Certified, UL Listed
Frequency
60 Hz
Outlet Shape
Round
Maximum Fan Speed
3,400 RPM
Motor Type
Permanent Split Capacitor
Airflow @ 0.000 in SP
88 cfm
Compatible with Brand
Trane
Current
0.71 A
Maximum Motor Horsepower
1/20 hp
Includes Motor
Yes
For Appliance Type
Gas Furnaces
Nameplate Voltage
115V AC
Maximum Motor Speed
3,450 RPM
Wheel Type
Backward-Inclined
Wheel Material
Polypropylene
Maximum Static Pressure
3 in wc
Power Consumption
73 W
Motor Insulation Class
B
Maximum Inlet Air Temperature
40 Degrees C

Description

Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Gas Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 3/8 in, Compatible with Brand Trane, Replacement For Manufacturer Model Number 70623956, 70624004, 70624538, D330757P03, FB-RFB130, X38040313037, Nameplate Voltage 115V AC, Phase 1, Current 0.71 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM
