Shop FASCO

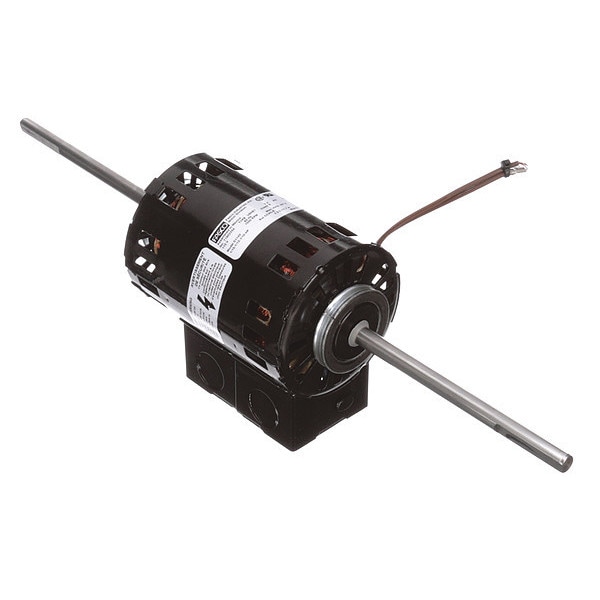

Motor, 1/15, 1/12, 1/10 HP, OEM Replacement Brand: McQuay Replacement For: 879-382564B-00

  • Mfr # D1140
  • Zoro # G4334465
product price:
$
287.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/15, 1/12, 1/10 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D1140
Zoro #
G4334465
UPC #
818508022062
Country of Origin
Mexico
Frame
3.3
HP
1/15, 1/12, 1/10 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Rings
Motor Shaft Rotation
Counterclockwise Shaft End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1500 rpm
No. of Speeds
3
Number of Shafts
1
OEM Replacement Brand
McQuay
Phase
1
RPM Range
1501-1600
Voltage
115V
Motor Bearings
Sleeve
Replacement For
879-382564B-00
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
2.2/2.1/1.7A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115V AC, 120V AC
Weight
6 lb
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Number of Speeds
3
Bearing Type
Sleeve
Ambient Temperature - Maximum
40 Degrees C
Compatible Brand
McQuay
Motor Enclosure Type
Open Air Over
Shaft Design
Flat
Full Load Current @ 60 Hz
2.2/2.1/1.7 A
Insulation Class
B
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Compatible Manufacturer Part Number
879-382564B-00

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp, 1/12 hp, 1/15 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 3, Voltage 115V AC, Full Load Amps 2.2/2.1/1.7 A, 3.3 Frame, OEM Replacement Brand McQuay, Replacement For 879-382564B-00, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE
