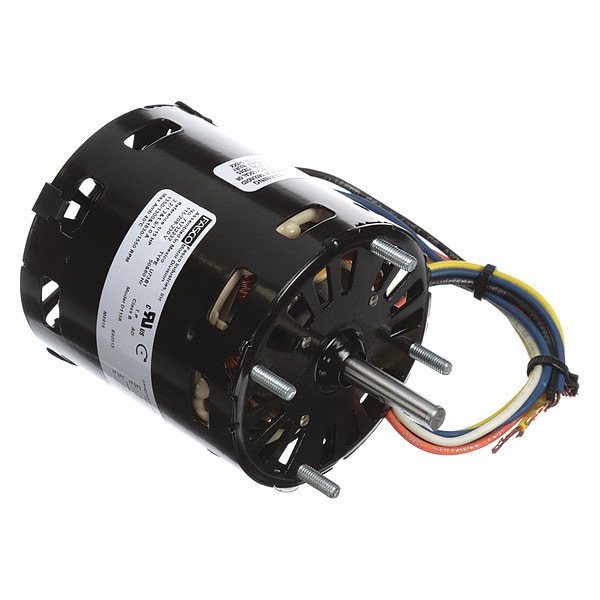

Motor, 1/15 HP, OEM Replacement Brand: Krack Refrigeration Replacement For: E206444

  • Mfr # D1156
  • Zoro # G4334377
product price:
$
172.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/15 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1156
Zoro #
G4334377
UPC #
818508022178
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16"
Shaft Length
1 1/2 in
Length Less Shaft
3 15/16 in
Bolt Circle Dia.
2-13/16"
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr
Overall Length
5 7/16 in
Stud Size
10-32 X 9/16"
Mounting Stud Thread Size
#10-32
Bolt Circle Diameter
2 13/16 in
Frame Size
3.3
Shaft Diameter
5/16 in
Body Diameter
3.4 in
Wire Rope Length
5 7/16 in
Length
5 7/16 in

Details

Frame
3.3
HP
1/15 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Clockwise Shaft End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Auto
Nameplate RPM
1630/1550 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Krack Refrigeration
Phase
Single
RPM Range
1601-1700
Voltage
115V AC, 208V AC to 230V AC
Motor Bearings
Sleeve
Replacement For
E206444
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.9/1A
Capacitor Required
No
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Flat
Hz
50/60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4 in x 4 in
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC, 208V AC to 230V AC, 208V AC to 240V AC, 208V AC, 230V AC, 240V AC
Weight
5 lb
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Number of Speeds
2
Full Load Current @ 60 Hz
1.9/1.0 A
Bearing Type
Sleeve
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Sub Application
Condenser Fan
Motor Enclosure Type
Open Air Over
Insulation Class
B
Compatible Manufacturer Part Number
E206444
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Compatible Brand
Krack Refrigeration
Shaft Design
Flat

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,630/1,550 RPM, No. of Speeds 2, Voltage 115/208-230V AC, Full Load Amps 1.9/1.0 A, 3.3 Frame, OEM Replacement Brand Krack Refrigeration, Replacement For E206444, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over
