Shop CENTURY

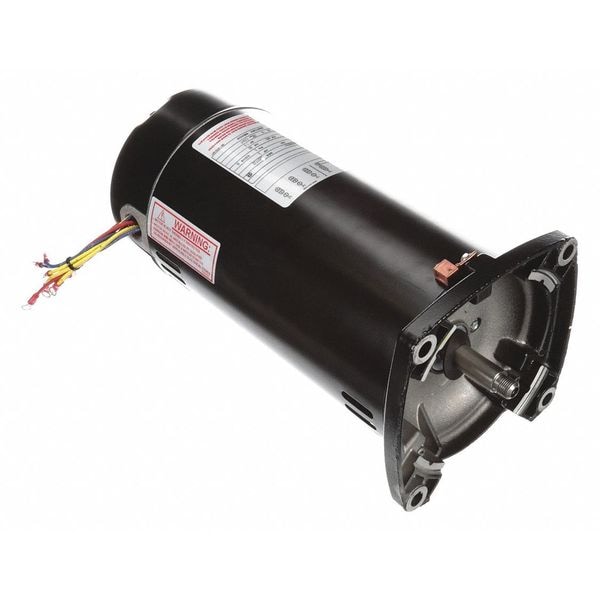

Pool Pump Motor, 3-Phase, 2 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # Q3202
  • Zoro # G4482536
product price:
$
602.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
2
RPM Range
3,001-3,600
Motor Service Factor
1.3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Q3202
Zoro #
G4482536
UPC #
-
Country of Origin
China

Dimensions

Shaft Length
1 in
Shaft Dia.
5/8 in
Body Dia.
5.7 in
Length Less Shaft
12 7/16 in
Overall Length
13 5/16 in
Height
5 5/8 in
Shaft Dia. (In.)
5/8
Frame Size
48Y
Shaft Diameter
5/8 in
Body Diameter
5.7 in
Wire Rope Length
13 5/16 in
Length
13 5/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
2
RPM Range
3,001-3,600
Motor Service Factor
1.3
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Voltage
208V AC to 230V AC, 460V AC
Phase
Three
Full Load Amps
8.5/4.25 A
Motor Mounting Type
Face
Motor Application
Pump
Motor Efficiency Group
Standard Efficient
Hz
60 Hz
Shaft Material
Stainless Steel
Ins. Class
B
Motor Sub Application
Pool and Spa Pump
Motor Bearings
Ball
Ambient Temperature
50 Degrees C
Shaft
Threaded 1/2-20 UNF-2A RH
Motor Flange Material
Aluminum
Finish
Black
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Standards
CSA
Motor Thermal Protection
None
Max. Ambient Temp.
50 Degrees C
Duty Cycle
Continuous
Weight
32 lb
Motor Frame Material
Steel
Motor Shaft Design
Threaded
Usable @ 208V
Usable at 208V
Motor Mounting Position
Horizontal
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Application
Pump
Number of Wires
9
Ambient Temperature - Maximum
50 Degrees C
Full Load Current @ 60 Hz
8.5/4.25 A
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Product Type
Pump Motor
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Shaft Design
Threaded
Frequency
60 Hz
Frame Material
Steel
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.3
Sub Application
Pool and Spa Pump

Description

Pool and Spa Pump Motor, Body Dia. 5.7 in, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 8.5/4.25, Height 5 5/8 in, HP 2, Ins. Class B, Length Less Shaft 12 7/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: NY
