  9. Round OEM Blower, 1500/4700 RPM, 3 Phase, Direct, Plastic Variable Speed

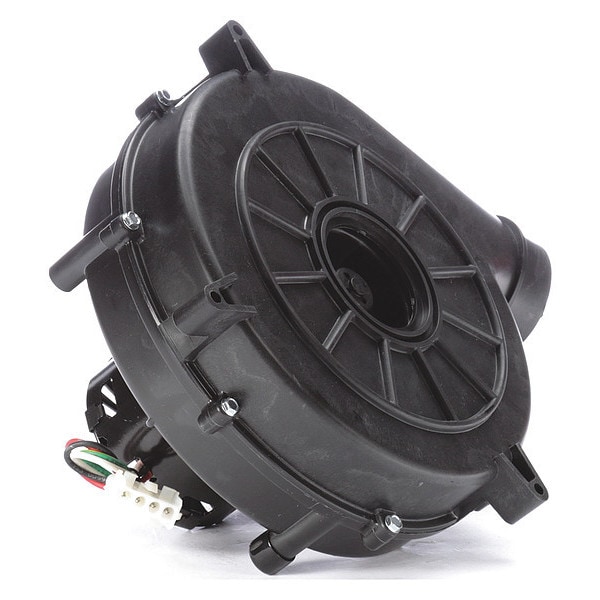

Fasco Round OEM Blower, 1500/4700 RPM, 3 Phase, Direct, Plastic Variable Speed A197 - main

Round OEM Blower, 1500/4700 RPM, 3 Phase, Direct, Plastic Variable Speed

  • Mfr # A197

  • Zoro # G2031447

product price: $202.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
1.00
Housing Material
Plastic
Inlet Dia.
2 in
Number of Speeds
Variable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A197
Zoro #
G2031447
UPC #
815585025238
Country of Origin
Mexico

Dimensions

Inlet Dia.
2 in
Overall Height
9 1/8 in
Overall Width
9 1/2 in
Blower Wheel Diameter
6 1/2 in
Lead Length
4 in
Outlet Dia.
2 5/8 in
Overall Depth
5 7/8 in
Blower Wheel Width
1 1/4 in
Inlet Diameter
2 in
Outlet Diameter
2 5/8 in
Wheel Diameter
6 1/2 in

Details

Drive Type
Direct
Full Load Amps
1.00
Housing Material
Plastic
Number of Speeds
Variable
Phase
3
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
3-Phase
Blower Voltage
33/110V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Max. Inlet Temp.
180 Degrees F
Housing Color
Black
Motor Enclosure
Open
RPM
1500/4700
Replaces
Mfr. Model No. 7092-0238, D342097P01
Agency Compliance
CSA Compliant, UL Recognized
Motor Insulation
Class B
Wheel Type
Radial
Mounting Position
Shaft Horizontal
Hz
60
Bearing Type
Ball
Item
OEM Blower
Max. Ambient Temp.
104 Degrees F
Maximum Motor Speed
1,500 RPM
Motor Type
Split Phase
Nameplate Voltage
33-110V AC
Maximum Fan Speed
1,500 RPM
Wheel Material
Polypropylene
Application
Furnaces
Outlet Shape
Round
Electrical Connection
Wire Leads
Replacement For Manufacturer Model Number
7092-0238, 7092-0238S, D342097P01
Maximum Inlet Air Temperature
180 Degrees F
Airflow @ 0.000 in SP
97 cfm
Standards
CSA Certified, UL Listed
Maximum Static Pressure
4 1/2 in wc
Mounting Orientation
Horizontal
OEM Replacement
Yes
Current
1 A
Compatible with Brand
Trane
Motor Insulation Class
B
Frequency
60 Hz
Voltage
33/110VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 5/8 in, Compatible with Brand Trane, Replacement For Manufacturer Model Number 7092-0238, 7092-0238S, D342097P01, Nameplate Voltage 33-110V AC, Phase 3, Current 1 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Split Phase, Motor Insulation Class B, Maximum Fan Speed 1,500 RPM, Maximum Motor Speed 1,500 RPM, Maximum Inlet Air Temperature 180 Degrees F, Maximum Static Pressure 4 1/2 in wc
