Shop FASCO

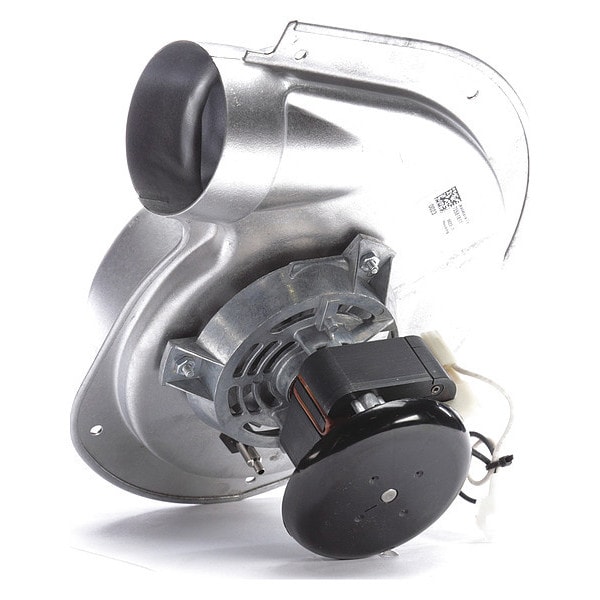

Round OEM Blower, 3000 RPM, 1 Phase, Direct, Steel 1 Speed

  • Mfr # A100

  • Zoro # G2031946

product price:  $186.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
1.3 A
Housing Material
Steel
Inlet Dia.
2 1/4 in
Number of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
A100
Zoro #
G2031946
UPC #
815585025726
Country of Origin
Mexico

Dimensions

Inlet Dia.
2 1/4 in
Overall Height
10 5/8 in
Overall Width
8 5/8 in
Blower Wheel Diameter
4 1/4 in
Outlet Dia.
3 in
Overall Depth
6 3/4 in
Lead Length
5 in
Blower Wheel Width
1 5/8 in
Outlet Diameter
3 in
Wheel Diameter
4 1/4 in
Inlet Diameter
2 1/4 in

Details

Drive Type
Direct
Full Load Amps
1.3 A
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Bearing Type
Ball
Housing Finish
Metal
RPM
3000
Max. Inlet Temp.
400 Degrees F
Motor Insulation
Class B
Item
OEM Blower
Mounting Position
All Position
Max. Ambient Temp.
104 Degrees F
Housing Color
Natural
Replaces
Mfr. Model No. 1014338119225
Motor Enclosure
Open
Wheel Type
Forward-Curved
Agency Compliance
CSA Compliant, UL Recognized
Hz
60
Maximum Inlet Air Temperature
400 Degrees F
OEM Replacement
Yes
Outlet Shape
Round
Standards
CSA Certified, UL Listed
Frequency
60 Hz
Compatible with Brand
Excel Comfort
Motor Type
Shaded Pole
Maximum Static Pressure
1 7/8 in wc
Motor Insulation Class
B
Electrical Connection
Wire Leads
Maximum Motor Speed
3,000 RPM
Current
1.3 A
Wheel Material
Steel
Replacement For Manufacturer Model Number
20093603/B, 7021-8935, 7058-0280
Airflow @ 0.000 in SP
80 cfm
Maximum Fan Speed
3,000 RPM
Nameplate Voltage
115V AC
Application
Furnaces
Voltage
115VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 2 1/4 in, Outlet Diameter 3 in, Compatible with Brand Excel Comfort, Replacement For Manufacturer Model Number 20093603/B, 7021-8935, 7058-0280, Nameplate Voltage 115V AC, Phase 1, Current 1.3 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,000 RPM, Maximum Motor Speed 3,000 RPM, Maximum Inlet Air Temperature 400 Degrees F, Maximum Static Pressure 1 7/8 in wc
