  9. Round OEM Blower, 3000 RPM, 1 Phase, Direct, Steel 1 Speed
Fasco Round OEM Blower, 3000 RPM, 1 Phase, Direct, Steel 1 Speed A260 - main

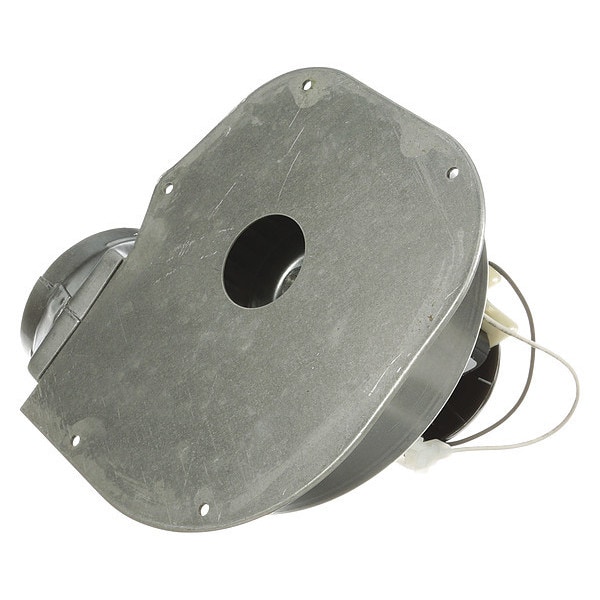

Round OEM Blower, 3000 RPM, 1 Phase, Direct, Steel 1 Speed

  • Mfr # A260

  • Zoro # G2031097

product price: $164.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
1.45
Housing Material
Steel
Inlet Dia.
1 3/4 in
Number of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A260
Zoro #
G2031097
UPC #
815585026174
Country of Origin
Mexico

Dimensions

Inlet Dia.
1 3/4 in
Overall Height
8 7/8 in
Overall Width
7 3/4 in
Blower Wheel Diameter
4 3/4 in
Blower Wheel Width
1 5/16 in
Overall Depth
6 in
Lead Length
5 in
Outlet Dia.
4 in
Wheel Diameter
4 5/8 in
Outlet Diameter
4 in
Inlet Diameter
1 3/4 in

Details

Drive Type
Direct
Full Load Amps
1.45
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
RPM
3000
Mounting Position
Shaft Horizontal
Item
OEM Blower
Housing Color
Natural
Agency Compliance
CSA Compliant, UL Recognized
Housing Finish
Metal
Motor Enclosure
Open
Max. Ambient Temp.
104 Degrees F
Replaces
Mfr. Model No. 7058-0261, D342077P03
Max. Inlet Temp.
400 Degrees F
Motor Insulation
Class B
Wheel Type
Forward-Curved
Bearing Type
Ball
Hz
60
Compatible with Brand
Trane
Standards
CSA Certified, UL Listed
Mounting Orientation
Horizontal
Wheel Material
Steel
Nameplate Voltage
115V AC
OEM Replacement
Yes
Maximum Fan Speed
3,267 RPM
Electrical Connection
Wire Leads
Maximum Static Pressure
2 in wc
Application
Furnaces
Maximum Inlet Air Temperature
400 Degrees F
Motor Insulation Class
B
Motor Type
Shaded Pole
Frequency
60 Hz
Replacement For Manufacturer Model Number
7058-0261, D342077P03
Airflow @ 0.000 in SP
61 cfm
Maximum Motor Speed
3,267 RPM
Outlet Shape
Round
Current
1.23 A
Voltage
115VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 1 3/4 in, Outlet Diameter 4 in, Compatible with Brand Trane, Replacement For Manufacturer Model Number 7058-0261, D342077P03, Nameplate Voltage 115V AC, Phase 1, Current 1.23 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,267 RPM, Maximum Motor Speed 3,267 RPM, Maximum Inlet Air Temperature 400 Degrees F, Maximum Static Pressure 2 in wc, Airflow @ 0.000 in SP 61 cfm
