  9. Round OEM Blower, 3250/2800 RPM, 1 Phase, Direct, Plastic 2 Speed

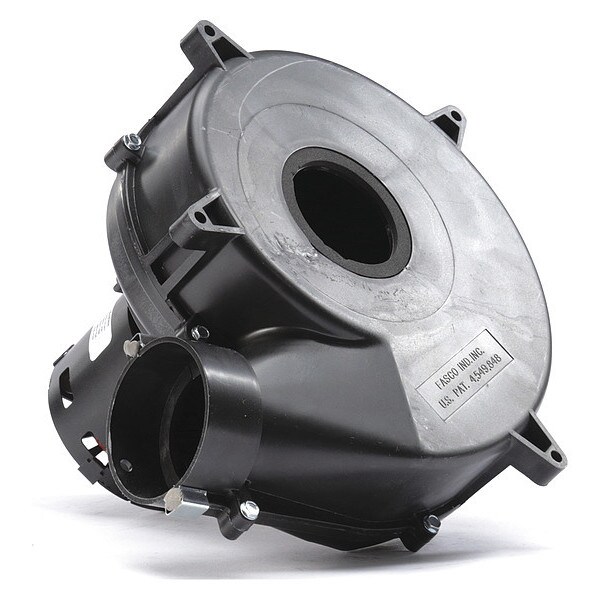

Fasco Round OEM Blower, 3250/2800 RPM, 1 Phase, Direct, Plastic 2 Speed A247 - main

Round OEM Blower, 3250/2800 RPM, 1 Phase, Direct, Plastic 2 Speed

  • Mfr # A247

  • Zoro # G2031115

product price: $243.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
0.95
Housing Material
Plastic
Includes
Gasket
Number of Speeds
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A247
Zoro #
G2031115
UPC #
815585026136
Country of Origin
Mexico

Dimensions

Overall Height
9 1/8 in
Overall Width
7 3/4 in
Blower Wheel Diameter
4 3/4 in
Overall Depth
6 3/4 in
Lead Length
9 in
Blower Wheel Width
1 11/16 in
Wheel Diameter
4 5/8 in
Inlet Diameter
2 in
Outlet Diameter
2 3/8 in

Details

Drive Type
Direct
Full Load Amps
0.95
Housing Material
Plastic
Includes
Gasket
Number of Speeds
2
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Hz
60
Mounting Position
Shaft Horizontal
Replaces
Mfr. Model No. 7062-5519
Housing Color
Black
Agency Compliance
CSA Compliant, UL Recognized
Motor Insulation
Class B
Wheel Type
Forward-Curved
Max. Inlet Temp.
180 Degrees F
Item
OEM Blower
Motor Enclosure
Open
RPM
3250/2800
Bearing Type
Sleeve
Max. Ambient Temp.
104 Degrees F
Electrical Connection
Wire Leads
Motor Insulation Class
B
Compatible with Brand
Rheem, RUUD
Motor Type
Permanent Split Capacitor
Maximum Motor Speed
3,139 RPM
Current
0.95 A
Frequency
60 Hz
OEM Replacement
Yes
Standards
CSA Certified, UL Listed
Maximum Inlet Air Temperature
180 Degrees F
Nameplate Voltage
115V AC
Maximum Fan Speed
3,139 RPM
Maximum Static Pressure
3 3/8 in wc
Outlet Shape
Round
Mounting Orientation
Horizontal
Wheel Material
Polypropylene
Application
Furnaces
Airflow @ 0.000 in SP
89 cfm
Replacement For Manufacturer Model Number
7062-5519
Voltage
115VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 3/8 in, Compatible with Brand Rheem, RUUD, Replacement For Manufacturer Model Number 7062-5519, Nameplate Voltage 115V AC, Phase 1, Current 0.95 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,139 RPM, Maximum Motor Speed 3,139 RPM, Maximum Inlet Air Temperature 180 Degrees F, Maximum Static Pressure 3 3/8 in wc
