Shop PLASTEC

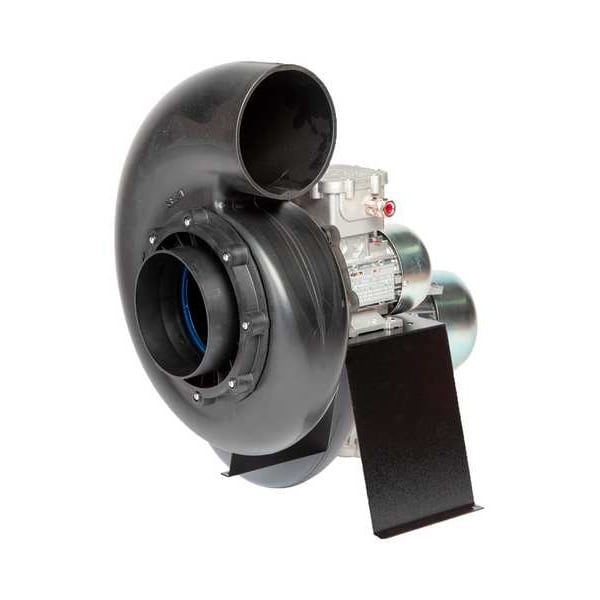

Blower, Forward Curve, 7 7/8 in

  • Mfr # P20XT2P100

  • Zoro # G200871551

product price:
$
4,588.99
/ea
Free Shipping & Returns

Key Features

Type
Direct Drive Forward Curve, Hazardous Location,
Wheel Dia. (In.)
7.875 in
Voltage
230/460
Motor HP
1 hp
Motor Type
Hazardous Location, Three Phase
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P20XT2P100
Zoro #
G200871551
UPC #
-
Country of Origin
United States
Item
Blower
Type
Direct Drive Forward Curve, Hazardous Location,
Voltage
230/460
Motor HP
1 hp
Motor Type
Hazardous Location, Three Phase
CFM @ 4.000-In. SP
600
Bearing Type
Sealed, Permanently Lubricated Ball
Max. Inlet Temp. (Deg. F)
140 Degrees F
dBA @ 5 Feet
73 dBA
Rotation
CCW
CFM @ 1.500-In. SP
600
CFM @ 2.000-In. SP
600
Housing Material
Plastic
Includes
Motor Mounting Base
Motor Enclosure
Explosion Proof
Housing Finish
Polypropylene
Max. Ambient Temp. (F)
-13 Degrees F
CFM @ 3.000-In. SP
600
CFM @ 3.500-In. SP
600
Motor RPM
3,450 RPM
CFM @ 2.500-In. SP
600
Agency Compliance
AMCA and CSA certified, UL Listed
Wheel Type
Forward-Curved
Full Load Amps
3.2/1.6 A
Phase
3
Wheel Material
Plastic
Hz
50/60 Hz
Motor Frame
71
Blower RPM
3,450 RPM
Sound Level
73 dBA @ 5 ft
Airflow @ 3.500 in SP
600 cfm
Flange Type
Non-Flanged
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Motor Speed
3,450 RPM
Nameplate Voltage
230/460V AC
Hazardous Location Application
Yes
Spark Resistant Construction Type
A
Includes Drive Package
Yes
Maximum Fan Speed
3,450 RPM
Airflow @ 4.000 in SP
600 cfm
Airflow @ 3.000 in SP
600 cfm
Standards
AMCA Air Performance Certified, CSA Certified, UL Listed
Drive Type
Direct Drive
Mount Type
Motor Mount
Maximum Ambient Temperature
-13 Degrees F
Motor Frame Designation
71
Maximum Inlet Air Temperature
140 Degrees F
Minimum Ambient Temperature
-40 Degrees F
Motor Horsepower
1 hp
Number of Discharge Positions
2
Frequency
50/60 Hz
Minimum Fan Speed
3,450 RPM
Corrosion Resistant
Yes
Airflow @ 1.500 in SP
600 cfm
Outlet Shape
Round
Airflow @ 2.000 in SP
600 cfm
Includes Mounting Hardware
Yes
For Air Type
Contaminated, Damp, Dirty and Dusty, Emergency Smoke Control, Clean Air, High Temperature, Spark Resistant
Thermal Overload Protection
Yes
Mounting Orientation
Multiposition
Includes Motor
Yes
Airflow @ 2.500 in SP
600 cfm
Assembly
Assembled
Current
3.2/1.6 A
Maximum Static Pressure
5 1/2 in wc
Number of Inlets
1
OEM Replacement
No

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 7 7/8 in, Airflow @ 1.500 in SP 600 cfm, Airflow @ 2.000 in SP 600 cfm, Airflow @ 2.500 in SP 600 cfm, Airflow @ 3.000 in SP 600 cfm, Airflow @ 3.500 in SP 600 cfm, Airflow @ 4.000 in SP 600 cfm
