  9. Round OEM Blower, 3500 RPM, 1 Phase, Direct, Aluminum 2 Speed

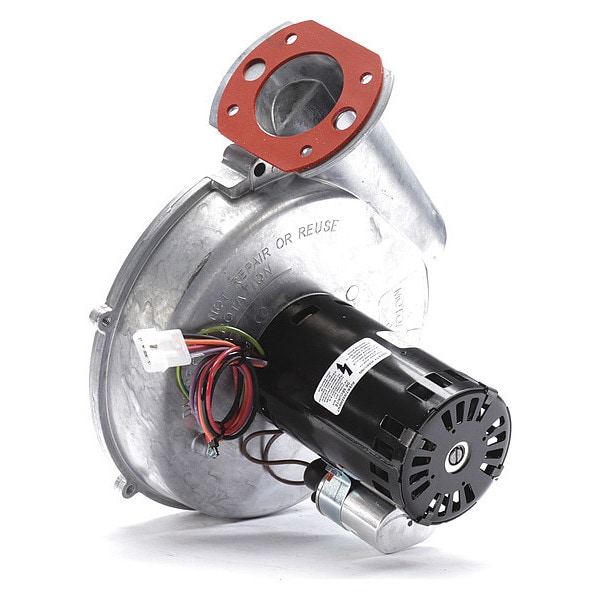

Fasco Round OEM Blower, 3500 RPM, 1 Phase, Direct, Aluminum 2 Speed A271 - main

Round OEM Blower, 3500 RPM, 1 Phase, Direct, Aluminum 2 Speed

  • Mfr # A271

  • Zoro # G2031060

product price: $536.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
0.62
Housing Material
Aluminum
Includes
Gasket
Number of Speeds
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A271
Zoro #
G2031060
UPC #
815585026297
Country of Origin
Mexico

Dimensions

Overall Height
10 1/2 in
Overall Width
9 1/2 in
Blower Wheel Diameter
7 7/8 in
Overall Depth
8 in
Lead Length
12 in
Blower Wheel Width
3/4 in
Wheel Diameter
7 3/4 in
Inlet Diameter
8 3/4 in
Outlet Diameter
2 1/4 in

Details

Drive Type
Direct
Full Load Amps
0.62
Housing Material
Aluminum
Includes
Gasket
Number of Speeds
2
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
208/230V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Replaces
7062-3969, X38040308-01
RPM
3500
Mounting Position
Shaft Horizontal
Wheel Type
Backward-Curved
Housing Color
Natural
Bearing Type
Ball
Hz
50/60
Item
OEM Blower
Motor Enclosure
Open Internal Fan-Cooled
Motor Insulation
Class B
Agency Compliance
CSA Compliant, UL Recognized
Max. Inlet Temp.
200 Degrees F
Max. Ambient Temp.
104 Degrees F
Motor Insulation Class
B
Motor Type
Permanent Split Capacitor
Maximum Motor Speed
3,500 RPM
Nameplate Voltage
208-230V AC
Wheel Material
Aluminum
Compatible with Brand
Trane
Current
0.62 A
Application
Furnaces
Standards
CSA Certified, UL Listed
Replacement For Manufacturer Model Number
7062-3969, X38040308-01
Electrical Connection
Wire Leads
Maximum Fan Speed
3,500 RPM
Airflow @ 0.000 in SP
47 cfm
Maximum Static Pressure
3 1/4 in wc
OEM Replacement
Yes
Outlet Shape
Round
Mounting Orientation
Horizontal
Maximum Inlet Air Temperature
200 Degrees F
Frequency
50/60 Hz
Voltage
208/230VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 8 3/4 in, Outlet Diameter 2 1/4 in, Compatible with Brand Trane, Replacement For Manufacturer Model Number 7062-3969, X38040308-01, Nameplate Voltage 208-230V AC, Phase 1, Current 0.62 A, Frequency 50/60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,500 RPM, Maximum Motor Speed 3,500 RPM, Maximum Inlet Air Temperature 200 Degrees F, Maximum Static Pressure 3 1/4 in wc
