Shop FEDERAL SIGNAL

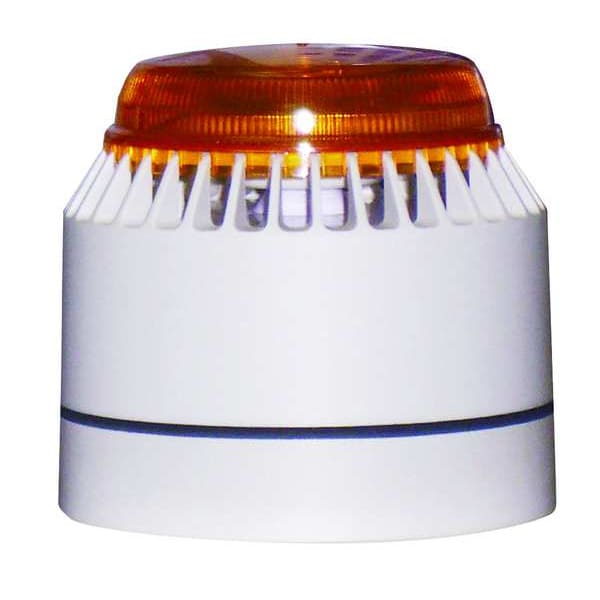

Horn Strobe, Siren, Continuous, 18 to 28V DC, 82 to 100dB at 10 ft, ABS, Plastic, White/Amber

  • Mfr # LP7-18-30A

  • Zoro # G1257995

product price:  $198.99
/ea
Free Shipping & Returns

Key Features

Housing Material
ABS, Plastic
Mounting
Surface
Amps
0.068 AC
Diameter
3.6667 in
Color
White/Amber
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP7-18-30A
Zoro #
G1257995
UPC #
782979204299
Country of Origin
United Kingdom

Dimensions

Diameter
3.6667 in
Height
3.5 in
Overall Width
3 19/32 in
Overall Depth
1 21/32 in
Overall Length
3 1/2 in
Overall Diameter
3 21/32 in

Details

Item
Horn Strobe
Housing Material
ABS, Plastic
Mounting
Surface
Amps
0.068 AC
Color
White/Amber
Audible Alarm Type
Siren
Voltage
18 to 28V DC
Standards
CE
Indoor/Outdoor
Indoor
Decibels
82 to 100dB @ 10 ft
Sound Pattern
Continuous
Current Drawn
0.068 A
Operating Temp.
14 Degrees to 131 Degrees F
Lens Design
Strobe Tube
Lens Color
Amber
Vibrating
No
Visual Indicator Type
Strobe
Flashes per Minute
60
Lamp Life
10,000 hr
Housing Color
White
Power Source
Wire
Input Voltage
30 V DC
Features
The Beacon Will Operate Jointly with any Tone Selected, The LP7 Features a Bright Xenon Strobe that Produces 0.7 Joules of Flash Energy
Lens Material
ABS, Plastic
Rating
NEMA 4X
Operating Temperature - Minimum
14 Degrees F
Alarm Volume @ 1 m - Maximum
110 dBA
Vibration
No Vibration
Number of Sound Patterns
1
NEMA Rating
NEMA 4X
Control Protocol
Direct Wire
Sound Continuity
Continuous, Pulse
Operating Current
0.068 A
Light Operating Mode
Strobe
IP Rating
IP54, IP65
Volume Selection
Selectable Volume
Light Source
Xenon
Alarm Volume @ 1 m - Minimum
92 dBA
Mounting Style
Surface Mount
Brightness Selection
Fixed Brightness
Operating Temperature - Maximum
131 Degrees F
Alarm Volume @ 10 ft - Minimum
82 dBA
Lens Shape
Cylinder
Lifespan
10,000 hr
Sound Style
Tone
Alarm Volume @ 10 ft - Maximum
100 dBA
Operating Voltage
18 to 28V DC

Description

FEDERAL SIGNAL LP7-18-30A is a horn strobe that combines a siren-style audible signal with an amber xenon strobe in one surface-mount unit. It operates on 18 to 28V DC and provides continuous sound output with selectable volume for audible and visual warning indication in indoor locations.

Key Features:

  • Audible alarm type: Siren with continuous sound pattern.
  • Sound output: 82 to 100 dBA at 10 ft; 92 to 110 dBA at 1 m.
  • Visual indicator type: Amber strobe with xenon light source and strobe tube lens design.
  • Flash rate: 60 flashes per minute.
  • Flash energy: 0.7 joules.
  • Operating voltage: 18 to 28V DC.
  • Current draw: 0.068 A.
  • Mounting style: Surface mount.
  • Housing material: ABS plastic with white housing and amber lens.
  • Ratings: IP54, IP65, NEMA 4X.
  • Operating temperature: 14 to 131 degrees F.
  • Rated lamp life: 10,000 hr.
  • Standards: CE.
