Shop FEDERAL SIGNAL

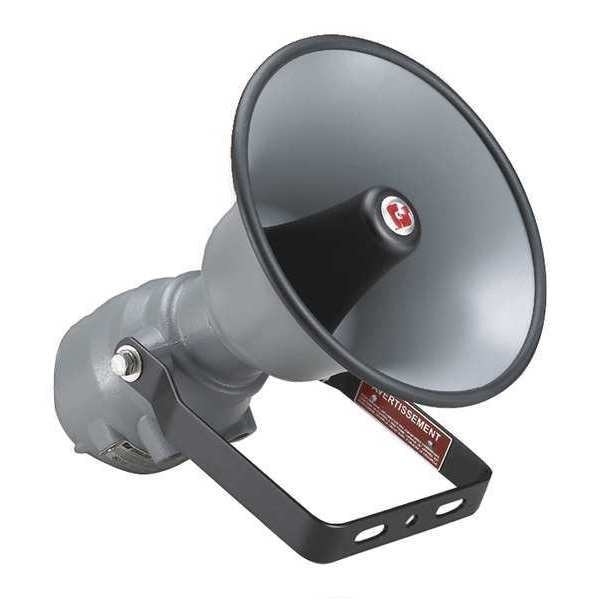

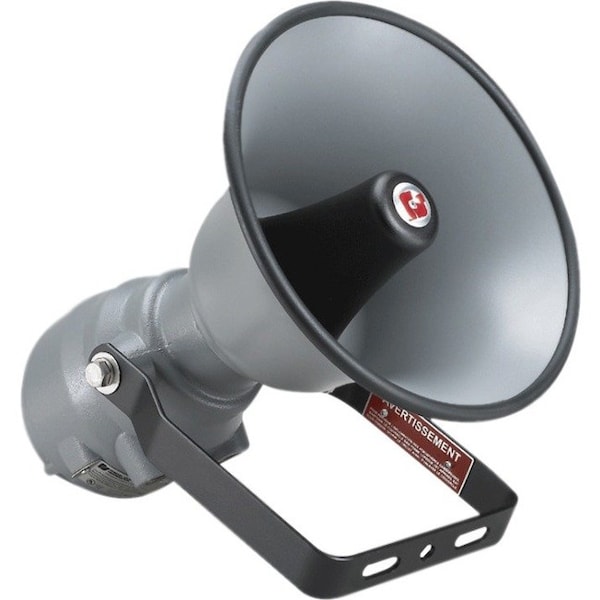

Speaker, Siren, Continuous, 120V AC, 240V AC, 24V DC, 101 to 108dB, Die Cast Aluminum, Gray

  • Mfr # SSTX3-MV

  • Zoro # G1457467

product price:  $2,847.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Die Cast Aluminum
Mounting
Surface
Amps
0.12 to 0.60
Color
Gray
Audible Alarm Type
Siren
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SSTX3-MV
Zoro #
G1457467
UPC #
782979209867
Country of Origin
United States

Dimensions

Depth
16.3125 in
Width
13.1094 in
Height
17 in
Overall Width
13 1/8 in
Overall Depth
16 5/16 in
Overall Length
17 in

Details

Item
Speaker
Housing Material
Die Cast Aluminum
Mounting
Surface
Amps
0.12 to 0.60
Color
Gray
Audible Alarm Type
Siren
Voltage
120V AC, 240V AC, 24V DC
Standards
cUL Listed, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
101 to 108dB
Sound Pattern
Continuous
Hazardous Class
I
Hazardous Division
1
Visual Indicator Type
No Visual Indicator
Operating Temp.
-67 Degrees to 151 Degrees F
Vibrating
No
Alarm Type
Audible
Input Voltage
240 V AC
Features
Typical uses Include Emergency Warning, Start and Dismissal, General Alarm and Evacuation
Product Type
Siren
Rating
NEMA 4X
Material
Die-Cast Aluminum
Vibration
No Vibration
Sound Style
Siren
Alarm Volume @ 1 m - Maximum
118 dBA
Sound Continuity
Continuous
Mounting Style
Surface Mount
Alarm Volume @ 10 ft - Maximum
108 dBA
For Location
Indoor, Outdoor
Alarm Volume @ 1 m - Minimum
111 dBA
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 2
IP Rating
IP66
Operating Temperature - Minimum
-67 Degrees F
Alarm Volume @ 10 ft - Minimum
101 dBA
NEMA Rating
NEMA 4X
Operating Temperature - Maximum
150 Degrees F
Operating Voltage
120V AC, 240V AC, 24V DC

Description

Federal Signal SSTX3-MV is a continuous audible siren speaker for indoor and outdoor signaling. It operates on 120V AC, 240V AC, or 24V DC and produces a siren sound rated at 101 to 108 dBA at 10 ft. Signaling applications include emergency warning, start and dismissal, general alarm, and evacuation when installed and used in accordance with applicable codes and product documentation. The die-cast aluminum housing is designed for surface mounting.

Key Features:

  • Alarm Type: Audible siren with continuous sound pattern
  • Sound Output: 101 to 108 dBA at 10 ft; 111 to 118 dBA at 1 m
  • Voltage: 120V AC, 240V AC, 24V DC
  • Current Draw: 0.12 to 0.60 A
  • Housing Material: Die-cast aluminum
  • Color: Gray
  • Mounting: Surface mount
  • Location Rating: Indoor, Outdoor
  • Enclosure Ratings: IP66, NEMA 4X
  • Hazardous Location: Class I, Division 1; Class I, Division 2; Class II, Division 2
  • Operating Temperature: -67 Degrees to 151 Degrees F
  • Standards: cUL Listed, UL Listed
  • Visual Indicator Type: None
  • Vibration: None
  • Overall Size: 17 in H x 13 1/8 in W x 16 5/16 in D
