Shop FEDERAL SIGNAL

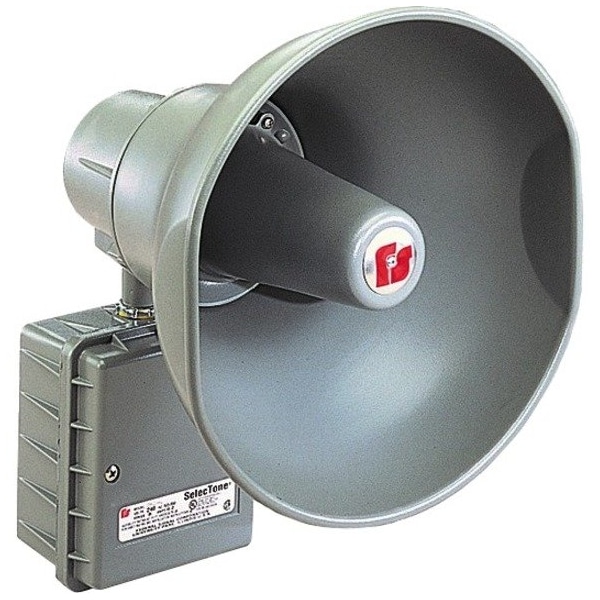

Signaling Device, Horn, Continuous, 120V AC, 110dB at 10 ft, Die-Cast Aluminum, Gray, Surface Mount

  • Mfr # 300GC-120

  • Zoro # G2796753

product price:  $986.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Die-Cast Aluminum
Mounting
Surface
Amps
0.27 AC
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
300GC-120
Zoro #
G2796753
UPC #
782979200215
Country of Origin
United States

Dimensions

Depth
8.25 in
Height
12.25 in
Width
8 in
Overall Width
8 in
Overall Height
12 1/2 in
Overall Depth
8 1/2 in

Details

Item
Signaling Device
Housing Material
Die-Cast Aluminum
Mounting
Surface
Amps
0.27 AC
Color
Gray
Audible Alarm Type
Horn
Voltage
120V AC
Standards
CSFM, cUL Listed, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
110dB @ 10 ft
Sound Pattern
Continuous
Vibrating
No
Operating Temp.
-67 Degrees to 150 Degrees F
Visual Indicator Type
No Visual Indicator
Housing Color
Gray
Rating
IP 55, NEMA 3R
NEMA Rating
NEMA 3R
Driver Configuration
1-Way
Power Style
Powered
Sensitivity
120 dBA
Power Voltage
120VAC, 24 V DC, 240VAC
IP Rating
IP54
Compatible Manufacturer Part Number
300CK, AM25CK, AM70CK, E-300CK, T-300CK
For Hazardous Location
Class I, Division 2
Mounting Style
Surface Mount
For Location
Indoor, Outdoor

Description

Federal Signal 300GC-120 is a powered horn signaling device with a continuous sound pattern and no visual indicator. It operates on 120V AC and produces 110 dB at 10 ft for audible warning applications in locations rated for indoor or outdoor use. The die-cast aluminum housing and surface-mount design allow surface-mounted fixed installation.

Key Features:

  • Audible alarm type: Horn with continuous sound pattern
  • Sound output: 110 dB at 10 ft
  • Sensitivity: 120 dBA
  • Voltage: 120V AC
  • Current draw: 0.27 AC
  • Housing material: Die-cast aluminum
  • Housing color: Gray
  • Mounting style: Surface mount
  • Location rating: Indoor, outdoor
  • Hazardous location rating: Class I, Division 2
  • Ingress and enclosure ratings: IP54, IP55, NEMA 3R
  • Operating temperature: -67 to 150 degrees F
  • Overall dimensions: 12 1/2 in H x 8 in W x 8 1/2 in D
  • Standards: CSFM, cUL Listed, UL Listed
  • Visual indicator type: No visual indicator
  • Vibrating: No
