Shop FEDERAL SIGNAL

Signaling Device, Horn, Continuous, 24V DC, 0 to 110dB, Die-Cast Aluminum, Gray, Surface Mount

  • Mfr # 300GCX-024

  • Zoro # G2989445

product price:
$
1,666.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Die-Cast Aluminum
Mounting
Surface
Amps
0.67 AC
Diameter
8 in
Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
300GCX-024
Zoro #
G2989445
UPC #
782979200352
Country of Origin
United States

Dimensions

Diameter
8 in
Width
7.3125 in
Height
12.25 in
Depth
8.5 in
Overall Height
12 1/2 in
Overall Width
8 in
Overall Depth
8 1/2 in

Details

Item
Signaling Device
Housing Material
Die-Cast Aluminum
Mounting
Surface
Amps
0.67 AC
Color
Gray
Audible Alarm Type
Horn
Voltage
24V DC
Standards
CSFM, cUL Listed, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
0 to 110dB
Sound Pattern
Continuous
Vibrating
No
Hazardous Class
I
Visual Indicator Type
No Visual Indicator
Operating Temp.
-65 Degrees to 150 Degrees F
Hazardous Division
2
Housing Color
Gray
For Use With
Mfr. No. UTM
Rating
NEMA 4X
Power Style
Powered
For Hazardous Location
Class I, Division 2, Class II, Division 2
NEMA Rating
NEMA 4X
Sensitivity
120 dBA
Compatible Manufacturer Part Number
300CK, AM25CK, AM70CK, E-300CK, T-300CK
For Location
Indoor, Outdoor
Driver Configuration
1-Way
IP Rating
IP66, IP69K
Dispersion - Conical
60 Degrees
Mounting Style
Surface Mount
Power Voltage
24V AC/DC

Description

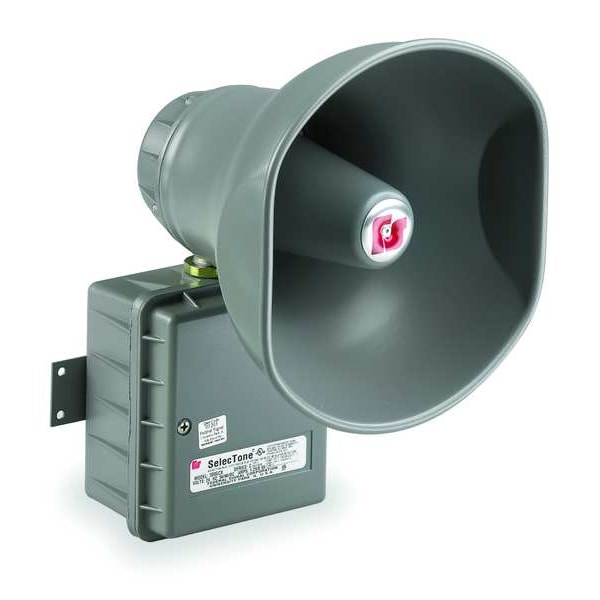

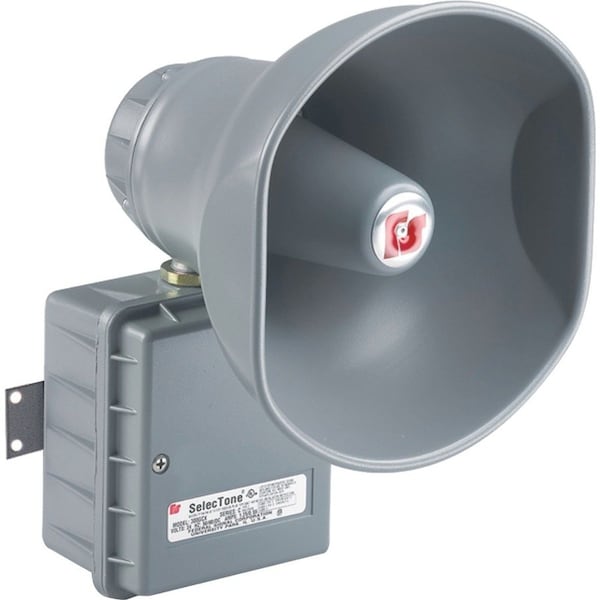

FEDERAL SIGNAL 300GCX-024 is a surface-mount signaling horn with a continuous sound pattern and 24V DC operation. It provides audible warning output from 0 to 110 dB and is housed in gray die-cast aluminum with an indoor/outdoor location rating. The unit is rated for hazardous locations including Class I, Division 2 and Class II, Division 2 for facility and worksite signaling applications that use an audible alert.

Key Features:

  • Audible alarm type: Horn with continuous sound pattern
  • Voltage: 24V DC; power voltage: 24V AC/DC; amps: 0.67 AC
  • Sound output: 0 to 110 dB
  • Housing material: Die-cast aluminum; color: Gray
  • Mounting style: Surface mount
  • Location rating: Indoor/Outdoor
  • Hazardous location rating: Class I, Division 2; Class II, Division 2
  • Ingress and enclosure ratings: IP66, IP69K, NEMA 4X
  • Operating temperature: -65 degrees to 150 degrees F
  • Driver configuration: 1-way; dispersion: 60-degree conical
  • Overall size: 12 1/2 in H x 8 in W x 8 1/2 in D
  • Standards: CSFM, cUL Listed, UL Listed
