Shop FEDERAL SIGNAL

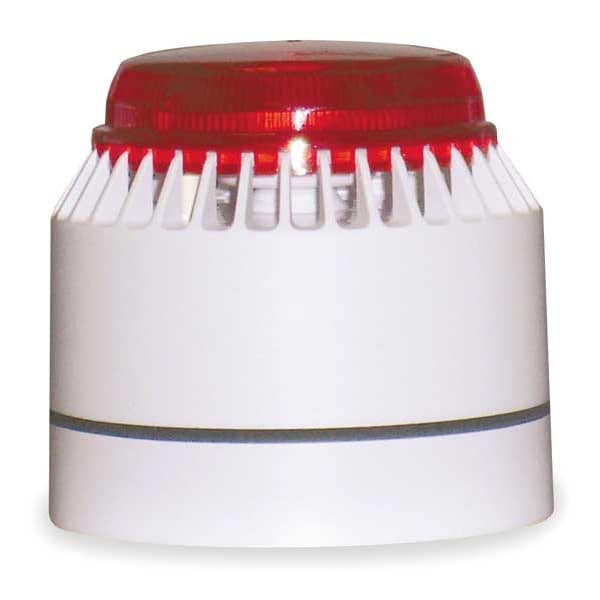

Horn Strobe, Siren, Continuous, 18 to 28V DC, 82 to 100dB at 10 ft, ABS, Plastic, White/Red

  • Mfr # LP7-18-30R

  • Zoro # G2551263

product price:  $198.99
/ea
Free Shipping & Returns

Key Features

Housing Material
ABS, Plastic
Mounting
Surface
Amps
0.068 AC
Diameter
3.6667 in
Color
White/Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP7-18-30R
Zoro #
G2551263
UPC #
782979204312
Country of Origin
United Kingdom

Dimensions

Diameter
3.6667 in
Height
3.5 in
Overall Width
3 19/32 in
Overall Depth
1 21/32 in
Overall Length
3 1/2 in
Overall Diameter
3 21/32 in

Details

Item
Horn Strobe
Housing Material
ABS, Plastic
Mounting
Surface
Amps
0.068 AC
Color
White/Red
Audible Alarm Type
Siren
Voltage
18 to 28V DC
Standards
CE
Decibels
82 to 100dB @ 10 ft
Sound Pattern
Continuous
Visual Indicator Type
Strobe
Lamp Life
10,000 hr
Flashes per Minute
60
Current Drawn
0.068 A
Lens Design
Strobe Tube
Lens Color
Red
Operating Temp.
14 Degrees to 131 Degrees F
Vibrating
No
Housing Color
White
Power Source
Wire
Input Voltage
30 V DC
Features
The Beacon Will Operate Jointly with any Tone Selected, The LP7 Features a Bright Xenon Strobe that Produces 0.7 Joules of Flash Energy
Lens Material
ABS, Plastic
Rating
NEMA 4X
Vibration
No Vibration
Light Source
Xenon
Operating Temperature - Minimum
14 Degrees F
Sound Continuity
Continuous, Pulse
Mounting Style
Surface Mount
Alarm Volume @ 1 m - Minimum
92 dBA
Operating Current
0.068 A
Operating Temperature - Maximum
131 Degrees F
Brightness Selection
Fixed Brightness
Number of Sound Patterns
1
Lifespan
10,000 hr
IP Rating
IP54, IP65
Control Protocol
Direct Wire
NEMA Rating
NEMA 4X
Alarm Volume @ 1 m - Maximum
110 dBA
Lens Shape
Cylinder
Alarm Volume @ 10 ft - Maximum
100 dBA
Alarm Volume @ 10 ft - Minimum
82 dBA
Volume Selection
Selectable Volume
Sound Style
Tone
Light Operating Mode
Strobe
Operating Voltage
18 to 28V DC

Description

FEDERAL SIGNAL LP7-18-30R is a direct-wire horn strobe that combines a siren-style audible alarm with a red xenon strobe for audible and visual signaling. It operates on 18 to 28V DC and provides continuous sound output with selectable volume for general facility alarm and warning notification applications requiring audible and visual indication.

Key Features:

  • Horn strobe with siren alarm and red strobe indicator
  • Sound output: 82 to 100 dBA at 10 ft; 92 to 110 dBA at 1 m
  • Operating voltage: 18 to 28V DC
  • Current draw: 0.068 A
  • Light source: xenon strobe tube with 0.7 joules of flash energy
  • Flash rate: 60 flashes per minute
  • Sound pattern: continuous; sound continuity: continuous, pulse
  • Housing and lens material: ABS plastic
  • Housing color/lens color: white housing with red lens
  • Mounting: surface mount
  • Ratings: IP54, IP65, NEMA 4X
  • Operating temperature: 14 to 131 degrees F
  • Rated lamp life: 10,000 hr
  • Standards: CE
