  6. Strobe Light, Amber, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe

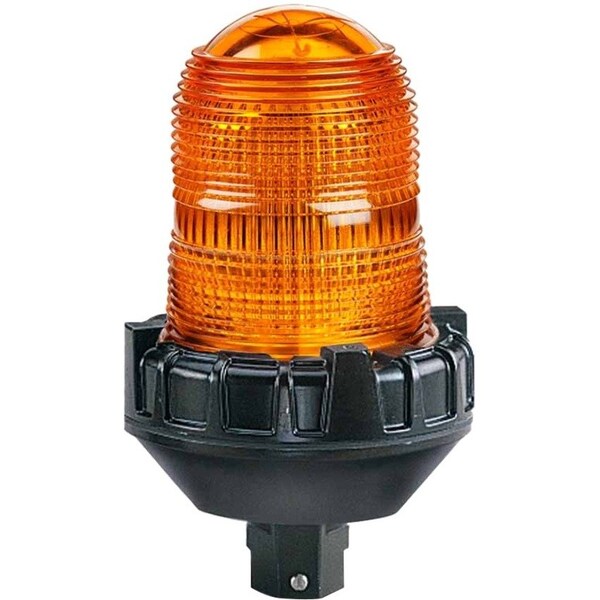

Federal Signal Strobe Light, Amber, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe 154XST-012-024A - main

Strobe Light, Amber, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe

  • Mfr # 154XST-012-024A

  • Zoro # G4821472

product price:  $1,005.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Glass
Flashes per Minute
80
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
154XST-012-024A
Zoro #
G4821472
UPC #
782979211419
Country of Origin
United States

Dimensions

Height
9 1/4 in
Overall Diameter
5 1/2 in
Depth
5 1/2 in
Width
5 1/2 in
Diameter
5 1/2 in
Footprint Diameter
5 1/2 in
Overall Depth
9 1/4 in

Details

Item
Strobe Light
Color
Amber
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Glass
Flashes per Minute
80
Housing Material
Aluminum
Standards
CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed
Features
Conformal Coated PCBA
Voltage
24V DC
Operating Temp.
-67 Degrees to 150 Degrees F
Includes
Dome Guard
Mounting
3/4 in NPT Pipe
Green Environmental Attribute
Does Not Contain Methylene Chloride
Rating
IP66, Marine, NEMA 4X
Light Output
520,000 Candela
Lens Design
Fresnel
Current Drawn
0.6A DC
For Use With
Plant Evacuation, Outdoor, Security, Forklift, Indoor
Product Type
Warning Light
Audible Alarm Type
Visual
Connection Type
Wire
NEMA Rating
NEMA 4X
Light Operating Mode
Strobe
IP Rating
IP66, IP69K
For Hazardous Location
Class I, Division 2, Class II, Division 1
Operating Current
0.600 A @ 24V DC
Light Intensity
520,000 cd
Brightness Selection
Fixed Brightness
Lifespan
10,000 hr
Mounting Mechanism
3/4 in NPT
Control Protocol
Direct Wire
Housing Color
Black
Lens Color
Amber
Lens Shape
Dome
Includes Mounting Hardware
Mounting Hardware Included
For Location
Indoor, Outdoor
Requires Base
Base Not Required
Mounting Style
Surface Mount
Footprint Shape
Circle
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-67 Degrees F
Operating Voltage
24V DC

Description

Strobe Light, Color Amber, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 520,000 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Glass, Housing Material Aluminum, Mounting 3/4 in NPT Pipe, Operating Temp. -67 Degrees to 150 Degrees F, Rating IP66, Marine, NEMA 4X, Power Source Wire, Current Drawn 0.6A DC, Width 5 1/2 in, Depth 5 1/2 in, Height 9 1/4 in, Voltage 24V DC
