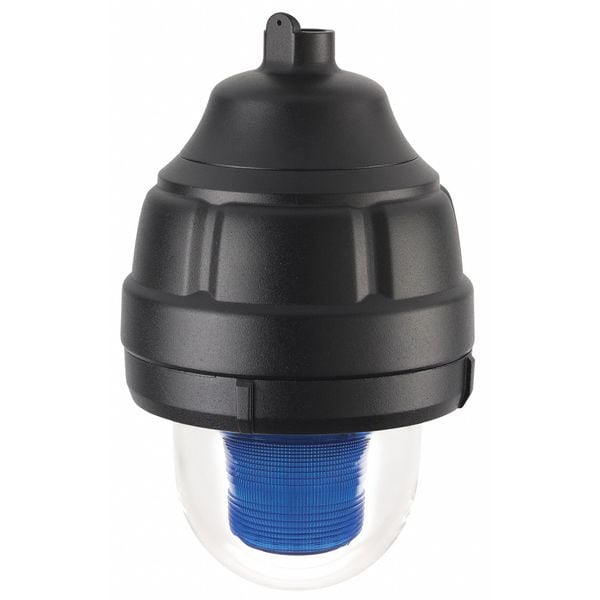

  11. Strobe Light, Blue, Strobe Tube, 24V DC, 60 FPM, 8 13/16 in Dia., Surface

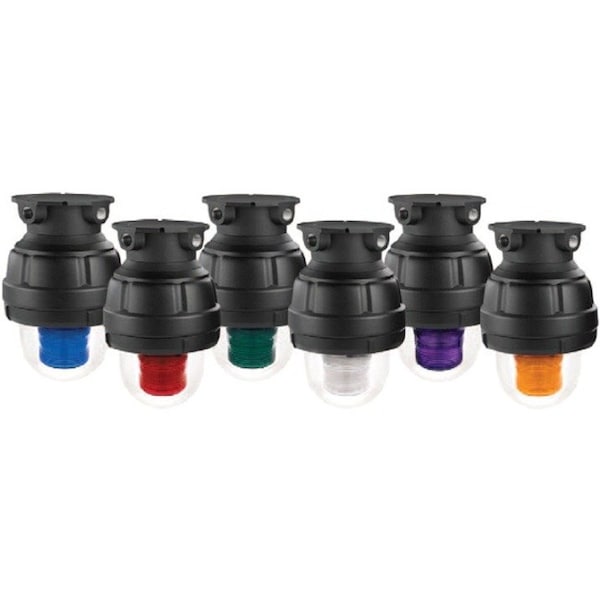

Federal Signal Strobe Light, Blue, Strobe Tube, 24V DC, 60 FPM, 8 13/16 in Dia., Surface 24XST-024B-MOD - main

Strobe Light, Blue, Strobe Tube, 24V DC, 60 FPM, 8 13/16 in Dia., Surface

  • Mfr # 24XST-024B-MOD

  • Zoro # G4835761

product price: $2,874.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Glass
Flashes per Minute
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
24XST-024B-MOD
Zoro #
G4835761
UPC #
782979232902
Country of Origin
United States

Dimensions

Height
11 3/8 in
Overall Diameter
8 13/16 in
Width
8 53/64 in
Diameter
8 53/64 in
Depth
8 53/64 in
Footprint Diameter
8 13/16 in
Overall Depth
11 3/8 in

Details

Item
Strobe Light
Color
Blue
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Glass
Flashes per Minute
60
Housing Material
Cast Aluminum
Standards
CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed
Features
Copper-Free Housing, Current In-Rush Limiting PCB Design, Explosion Resistant
Voltage
24V DC
Lens Design
Fresnel
Rating
IP66,NEMA 4X, Marine
Mounting
Surface
Green Environmental Attribute
Does Not Contain Methylene Chloride
Light Output
30 Candela
Operating Temp.
-67 Degrees to 150 Degrees F
Current Drawn
0.63A DC
For Use With
Security, Oil Rig, Mine, Refinery, Chemical Plant
Product Type
Strobe Light
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Lens Color
Blue
Light Intensity
280 cd
Control Protocol
Direct Wire
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 1
Mounting Style
Surface Mount
Lens Shape
Dome
Operating Temperature - Maximum
150 Degrees F
Lifespan
10,000 hr
Requires Base
Base Required
Brightness Selection
Fixed Brightness
Footprint Shape
Circle
Operating Current
0.710 A @ 24V DC
IP Rating
IP66, IP69K
Housing Color
Black
Includes Mounting Hardware
No Mounting Hardware
Light Operating Mode
Strobe
Operating Temperature - Minimum
-67 Degrees F
Operating Voltage
24V DC

Description

Strobe Light, Color Blue, Lamp Type Strobe Tube, Flashes per Minute 60, Light Output 30 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Glass, Housing Material Cast Aluminum, Mounting Surface, Operating Temp. -67 Degrees to 150 Degrees F, Rating IP66,NEMA 4X, Marine, Power Source Wire, Current Drawn 0.63A DC, Width 8 53/64 in, Depth 8 53/64 in, Height 11 3/8 in, Voltage 24V DC
