Shop FEDERAL SIGNAL

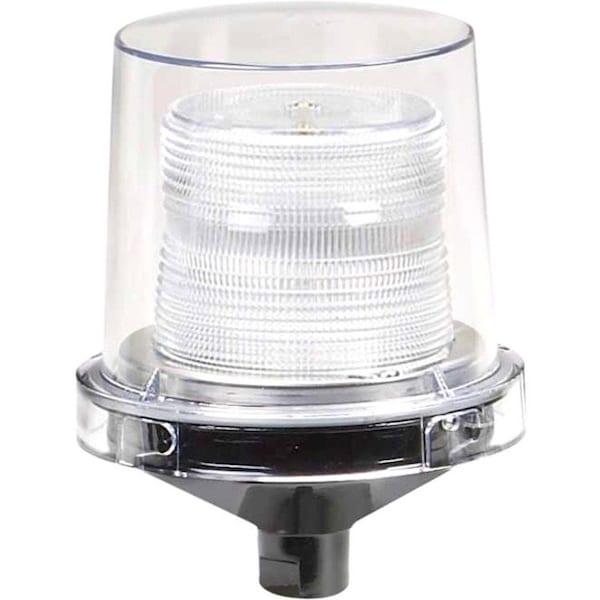

Strobe Light, Clear, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface

  • Mfr # 224XST-024C

  • Zoro # G4858231

product price:
$
886.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
224XST-024C
Zoro #
G4858231
UPC #
782979215578
Country of Origin
United States

Dimensions

Height
7 1/2 in
Overall Diameter
5 1/2 in
Width
5 1/2 in
Diameter
5 1/2 in
Depth
5 1/2 in
Overall Depth
7 1/2 in
Footprint Diameter
5 1/2 in

Details

Item
Strobe Light
Color
Clear
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
Housing Material
Aluminum
Standards
CSA Certified, CSFM Approved, cUL Listed, cULus Listed, UL Listed
Features
Conformal Coated PCBA
Voltage
24V DC
Green Environmental Attribute
Does Not Contain Methylene Chloride
Mounting
1/2 in NPT Pipe or Surface
Lens Design
Fresnel
Light Output
580,000 Candela
Current Drawn
0.7A DC
Rating
IP66, NEMA 4X
Operating Temp.
-40 Degrees to 104 Degrees F
For Use With
Chemical Plant, Security, Food Processing
Product Type
Strobe Light
Connection Type
Wire
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Operating Temperature - Minimum
-40 Degrees F
For Hazardous Location
Class I, Division 2, Class II, Division 2
Footprint Shape
Circle
Lifespan
10,000 hr
Requires Base
Base Required
Includes Mounting Hardware
No Mounting Hardware
Housing Color
Black
Brightness Selection
Fixed Brightness
Lens Color
Clear
Control Protocol
Direct Wire
Light Intensity
580,000 cd
IP Rating
IP66, IP69K
Operating Current
0.700 A @ 24V DC
Mounting Style
Surface Mount
Light Operating Mode
Strobe
Lens Shape
Dome
Operating Temperature - Maximum
104 Degrees F
Operating Voltage
24V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

Strobe Light, Color Clear, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 580,000 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Aluminum, Mounting 1/2 in NPT Pipe or Surface, Operating Temp. -40 Degrees to 104 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 0.7A DC, Width 5 1/2 in, Depth 5 1/2 in, Height 7 1/2 in, Voltage 24V DC
