  6. Strobe Light, Magenta, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface

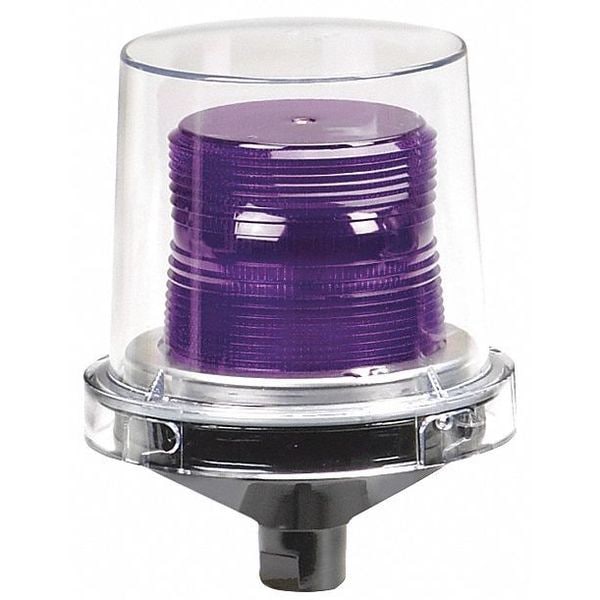

Federal Signal Strobe Light, Magenta, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface 224XST-024M - main

Strobe Light, Magenta, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 1/2 in NPT Pipe or Surface

  • Mfr # 224XST-024M

  • Zoro # G4850470

product price:  $860.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
224XST-024M
Zoro #
G4850470
UPC #
782979215608
Country of Origin
United States

Dimensions

Height
7 1/2 in
Overall Diameter
5 1/2 in
Diameter
5 1/2 in
Depth
5 1/2 in
Width
5 1/2 in
Overall Depth
7 1/2 in
Footprint Diameter
5 1/2 in

Details

Item
Strobe Light
Color
Magenta
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
Housing Material
Aluminum
Standards
CSA Certified, CSFM Approved, cUL Listed, cULus Listed, UL Listed
Features
Conformal Coated PCBA
Voltage
24V DC
Green Environmental Attribute
Does Not Contain Methylene Chloride
Rating
IP66, NEMA 4X
Lens Design
Fresnel
Light Output
580,000 Candela
Mounting
1/2 in NPT Pipe or Surface
Operating Temp.
-40 Degrees to 104 Degrees F
Current Drawn
0.7A DC
For Use With
Chemical Plant, Security, Food Processing
Product Type
Strobe Light
Audible Alarm Type
Visual
Connection Type
Wire
NEMA Rating
NEMA 4X
Lens Shape
Dome
Mounting Style
Surface Mount
Operating Current
0.700 A @ 24V DC
Includes Mounting Hardware
No Mounting Hardware
Footprint Shape
Circle
Operating Temperature - Maximum
104 Degrees F
IP Rating
IP66, IP69K
Lifespan
10,000 hr
Light Operating Mode
Strobe
Brightness Selection
Fixed Brightness
Lens Color
Magenta
Requires Base
Base Required
For Hazardous Location
Class I, Division 2, Class II, Division 2
Control Protocol
Direct Wire
Housing Color
Black
Operating Temperature - Minimum
-40 Degrees F
Light Intensity
580,000 cd
Operating Voltage
24V DC

Description

Strobe Light, Color Magenta, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 580,000 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Aluminum, Mounting 1/2 in NPT Pipe or Surface, Operating Temp. -40 Degrees to 104 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 0.7A DC, Width 5 1/2 in, Depth 5 1/2 in, Height 7 1/2 in, Voltage 24V DC
