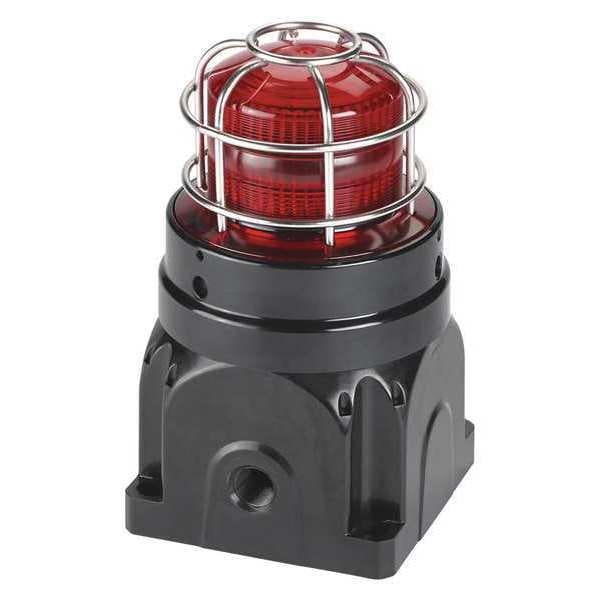

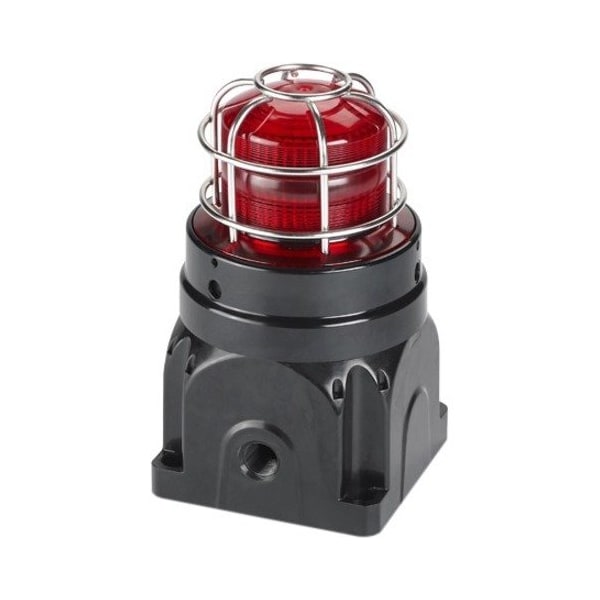

Strobe Light, Red, Xenon, 24V DC, 60 FPM, Not Applicable Dia., Surface

  • Mfr # G-STR-024-D-R

  • Zoro # G5577997


product price: $728.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Xenon
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G-STR-024-D-R
Zoro #
G5577997
UPC #
782979234135
Country of Origin
United States

Dimensions

Height
8 61/64 in
Depth
5 15/64 in
Width
5 15/64 in
Overall Width
5 7/32 in
Overall Length
5 7/32 in
Footprint Width
5 1/4 in
Footprint Length
5 1/4 in
Overall Depth
8 15/16 in

Details

Item
Strobe Light
Color
Red
Lamp Type
Xenon
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60
Housing Material
Glass Reinforced Polyester
Standards
ABS, ATEX Ex d IIC Ex de IIC and Ex tb IIIC, CE, CSFM Approved, cUL Listed, EAC, IECEx, INMETRO, UKEX Certified, UL Listed
Features
Corrosion Resistant, M20 Entries Standard
Voltage
24V DC
Operating Temp.
-58 Degrees to 158 Degrees F
Rating
IP66
Includes
Dome Guard
Light Output
21 Joules
Current Drawn
1.50A DC
Mounting
Surface
Lens Design
Fresnel
For Use With
Industrial, Control Panel, Signaling System, Marine, Security
Product Type
Strobe Light
Connection Type
TermiN/Al Block
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Housing Color
Black
Lifespan
10,000 hr
Lens Shape
Dome
Mounting Style
Surface Mount
Light Source
Xenon
Control Protocol
User Operated
Operating Current
0.830 A @ 24V DC
Operating Temperature - Minimum
-67 Degrees F
Footprint Shape
Square
Light Intensity
500 cd
Light Operating Mode
Strobe
IP Rating
IP66, IP67, IP69K
Mounting Mechanism
Screw
For Hazardous Location
Class I, Division 2, Class II, Division 2
Includes Mounting Hardware
Mounting Hardware Included
Brightness Selection
Fixed Brightness
Lens Color
Red
Operating Temperature - Maximum
158 Degrees F
Requires Base
Base Not Required
Operating Voltage
24V DC

Description

Strobe Light, Color Red, Lamp Type Xenon, Flashes per Minute 60, Light Output 21 Joules, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Polyester, Mounting Surface, Operating Temp. -58 Degrees to 158 Degrees F, Rating IP66, Power Source Wire, Current Drawn 1.50A DC, Width 5 15/64 in, Depth 5 15/64 in, Height 8 61/64 in
