Shop FEDERAL SIGNAL

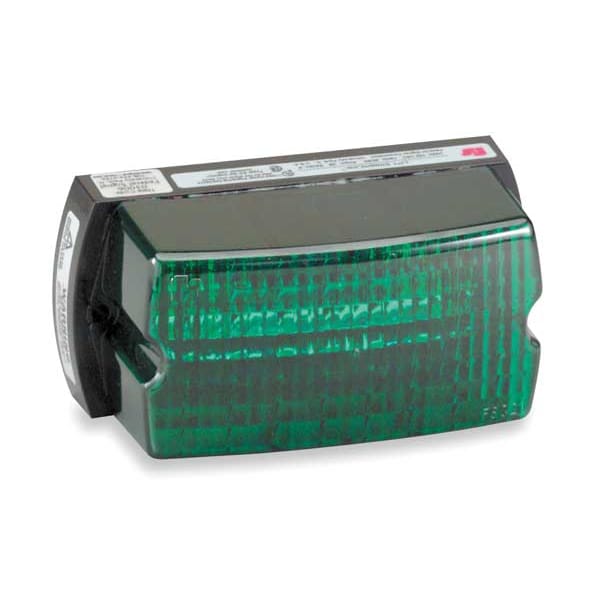

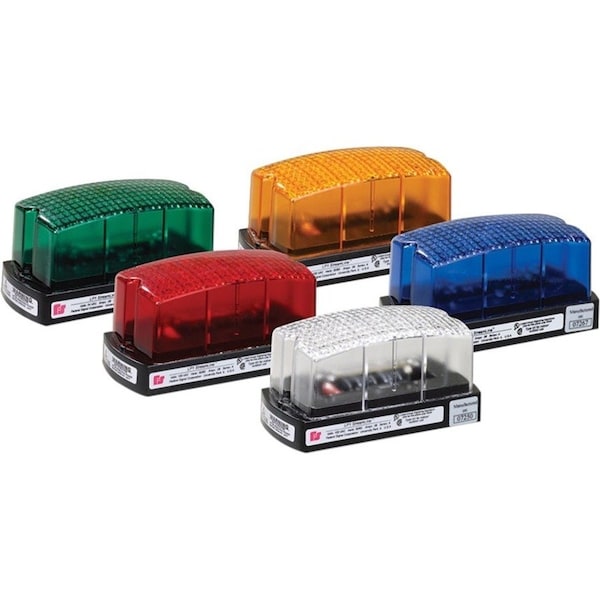

Warning Light, Green, Strobe Tube, 120V AC, 80 FPM, Not Applicable Dia., Surface

  • Mfr # LP1-120G

  • Zoro # G3102556

product price:
$
177.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
4,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP1-120G
Zoro #
G3102556
UPC #
782979201564
Country of Origin
United States

Dimensions

Height
2 5/8 in
Depth
2 5/16 in
Width
5 in
Overall Length
5 1/16 in
Overall Width
2 5/16 in
Footprint Length
5 1/16 in
Footprint Width
2 5/16 in
Overall Depth
2 5/8 in
Wire Rope Length
5 1/16 in
Length
5 1/16 in

Details

Item
Warning Light
Color
Green
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
4,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
Housing Material
Polycarbonate
Standards
cUL Listed, cULus Listed, UL Listed
Features
Conformal Coated PCB
Voltage
120V AC
Current Drawn
0.06A AC
Lens Design
Dome
Light Output
30 Candela
Rating
IP65, NEMA 4X
Operating Temp.
-31 Degrees to 150 Degrees F
Mounting
Surface
For Use With
Control Panel, Security, Forklift, Automated Guided Vehicle, Assembly Line, Wall
Product Type
Strobe Light
Includes
(2) 1 1/4 in 8/32 Slotted Hex Bolts, Neoprene Gasket
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Operating Temperature - Minimum
-31 Degrees F
Lifespan
4,000 hr
Lens Color
Green
Water Resistance
Water Resistant
Footprint Shape
Rectangle
Light Intensity
108,000 cd
Requires Base
Base Not Required
Includes Mounting Hardware
Mounting Hardware Included
Lens Shape
Bar
IP Rating
IP65
Control Protocol
Direct Wire
Operating Temperature - Maximum
150 Degrees F
Light Operating Mode
Strobe
Housing Color
Black
Brightness Selection
Fixed Brightness
Mounting Style
Surface Mount
Mounting Mechanism
Screw
Operating Current
0.060 A @ 120V AC
Operating Voltage
120V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

Warning Light, Color Green, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 30 Candela, Lamp Life 4,000 hr, Lens Design Dome, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting Surface, Operating Temp. -31 Degrees to 150 Degrees F, Rating IP65, NEMA 4X, Power Source Wire, Current Drawn 0.06A AC, Width 5 in, Depth 2 5/16 in, Height 2 5/8 in, Voltage 120V AC
