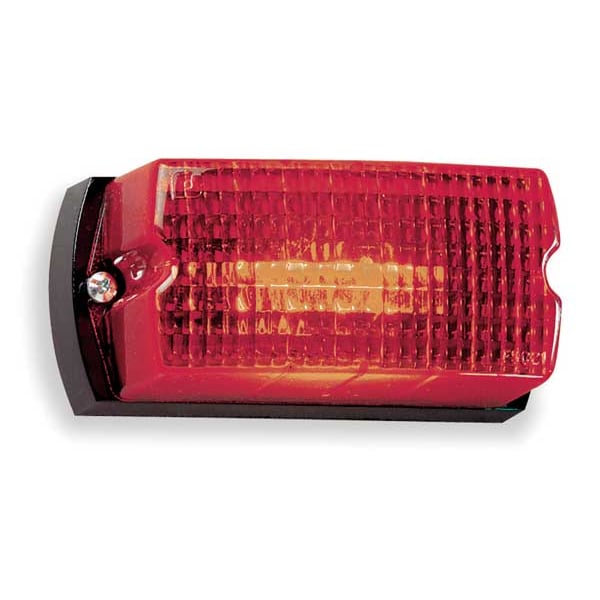

  11. Warning Light, Red, Strobe Tube, 120V AC, 80 FPM, Not Applicable Dia., Surface

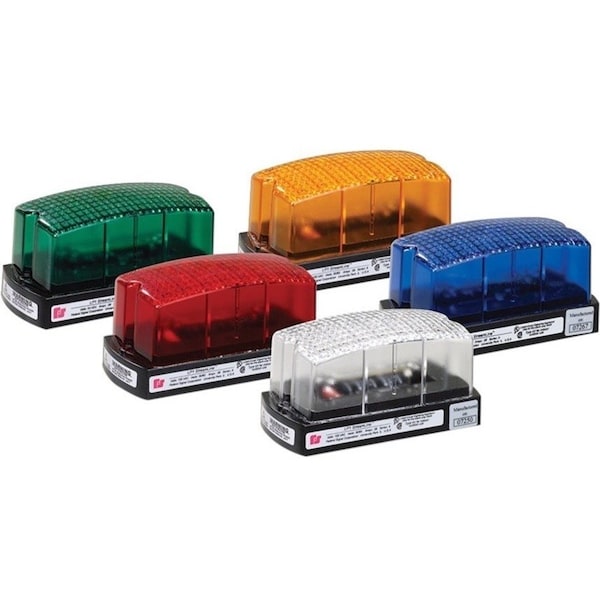

Federal Signal Warning Light, Red, Strobe Tube, 120V AC, 80 FPM, Not Applicable Dia., Surface LP1-120R - main

Warning Light, Red, Strobe Tube, 120V AC, 80 FPM, Not Applicable Dia., Surface

  • Mfr # LP1-120R

  • Zoro # G1745651

product price: $174.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
4,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LP1-120R
Zoro #
G1745651
UPC #
782979201571
Country of Origin
United States

Dimensions

Height
2 5/8 in
Depth
2 5/16 in
Width
5 in
Overall Length
5 1/16 in
Overall Width
2 11/32 in
Footprint Width
2 5/16 in
Overall Depth
2 5/8 in
Footprint Length
5 1/16 in

Details

Item
Warning Light
Color
Red
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
4,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
Housing Material
Polycarbonate
Standards
cUL Listed, cULus Listed, UL Listed
Features
Conformal Coated PCB
Voltage
120V AC
Current Drawn
0.06A AC
Lens Design
Dome
Operating Temp.
-31 Degrees to 150 Degrees F
Light Output
30 Candela
Mounting
Surface
Rating
IP65, NEMA 4X
For Use With
Wall, Automated Guided Vehicle, Forklift, Assembly Line, Control Panel, Security
Product Type
Strobe Light
Audible Alarm Type
Visual
Includes
(2) 1 1/4 in 8/32 Slotted Hex Bolts, Neoprene Gasket
NEMA Rating
NEMA 4X
Lens Color
Red
Operating Temperature - Minimum
-31 Degrees F
Mounting Mechanism
Screw
Mounting Style
Surface Mount
Operating Current
0.060 A @ 120V AC
IP Rating
IP65
Housing Color
Black
Lens Shape
Bar
Control Protocol
Direct Wire
Includes Mounting Hardware
Mounting Hardware Included
Lifespan
4,000 hr
Requires Base
Base Not Required
Brightness Selection
Fixed Brightness
Light Intensity
108,000 cd
Water Resistance
Water Resistant
Operating Temperature - Maximum
150 Degrees F
Footprint Shape
Rectangle
Light Operating Mode
Strobe
Operating Voltage
120V AC

Description

Warning Light, Color Red, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 30 Candela, Lamp Life 4,000 hr, Lens Design Dome, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting Surface, Operating Temp. -31 Degrees to 150 Degrees F, Rating IP65, NEMA 4X, Power Source Wire, Current Drawn 0.06A AC, Width 5 in, Depth 2 5/16 in, Height 2 5/8 in, Voltage 120V AC
