Shop FEDERAL SIGNAL

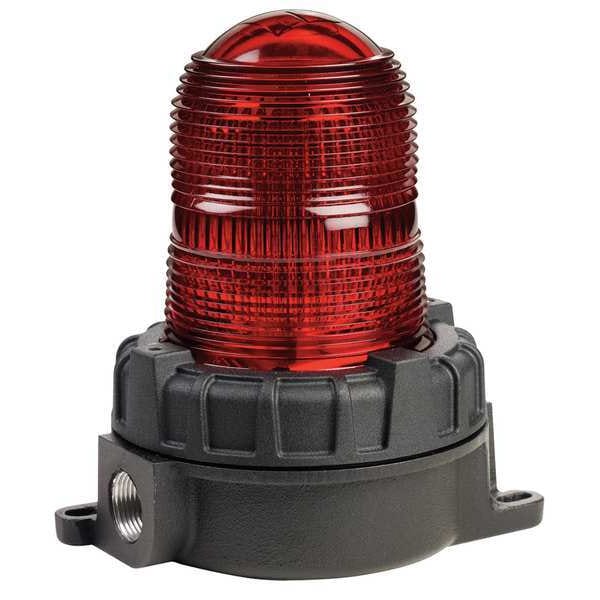

Warning Light, Strobe, Red, 12-24VDC

  • Mfr # 154XST-S12-24R
  • Zoro # G7249024
product price:
$
1,238.99
/ea
Free Shipping & Returns

Key Features

Light Color
Red
Standards
CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed
Lens Color
Red
Lighting Technology
Strobe Tube
Overall Diameter
5 9/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
154XST-S12-24R
Zoro #
G7249024
UPC #
782979230052
Country of Origin
United States

Dimensions

Overall Diameter
5 9/16 in
Overall Height
9-1/4 ft
Footprint Diameter
5 9/16 in
Overall Depth
8 3/16 in
Fits Chest Size
Conformal Coated PCBA

Details

Item
Warning Light
Light Color
Red
Standards
CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed
Lens Color
Red
Lighting Technology
Strobe Tube
IP Rating
IP66, IP69K
Lens Material
Glass
Electrical Connection
Wire
Mount Style
Surface Mount
Rating
NEMA 4X
Housing Material
Aluminum
Lens Design
Screw-on Dome
Includes
Dome Guard
Lamp Life
10,000 hr
Power Source
Wire
Light Output
520,000 Candela
Mounting
Surface
Flashes per Minute
80
Application
Indoor/Outdoor
Voltage
24V DC
Housing Color
Black
Features
Conformal Coated PCBA
Material
glass
Product Type
Warning Light
Connection Type
Wire
Mounting Style
Surface Mount
NEMA Rating
NEMA 4X
Operating Current
0.600 A @ 24V DC
Lens Shape
Dome
Light Intensity
520,000 cd
Requires Base
Base Not Required
Brightness Selection
Fixed Brightness
Footprint Shape
Circle
For Location
Indoor, Outdoor
Includes Mounting Hardware
Mounting Hardware Included
Lifespan
10,000 hr
For Hazardous Location
Class I, Division 2, Class II, Division 1
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-67 Degrees F
Control Protocol
Direct Wire
Light Operating Mode
Strobe
Maximum Operating Temperature
150 Degrees F
Current
0.600 A @ 24V DC
Minimum Operating Temperature
-67 Degrees F
Power Source - TS Only
Wire
Power Source - old
Wire

Description

Warning Light, Color Red, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 520,000 Candela, Lamp Life 10,000 hr, Lens Design Screw-on Dome, Lens Material Glass, Housing Material Aluminum, Mounting Surface, Operating Temp. -67 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn .60A AC, Width 6 13/25 in, Height 9 1/4 ft
