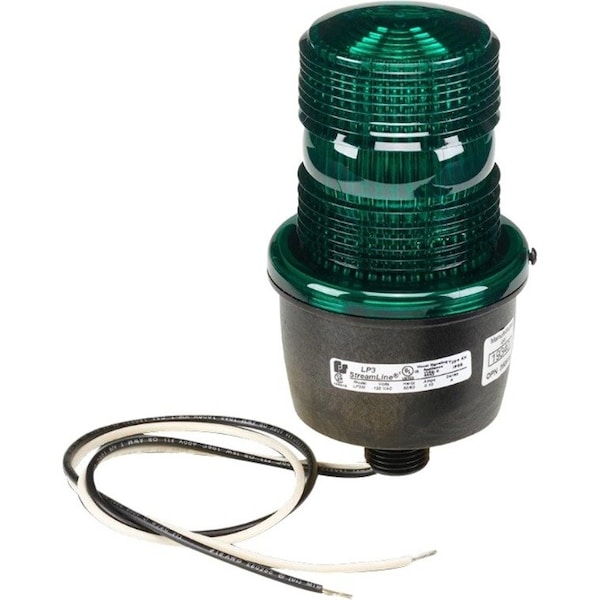

Federal Signal Low Profile Warning Light, Strobe, Green LP3M-120G - main

Low Profile Warning Light, Strobe, Green

  • Mfr # LP3M-120G

  • Zoro # G1872333

product price:  $144.99
/ea
Free Shipping & Returns

Key Features

Light Color
Green
Standards
CE, CSA Certified, cUL Listed, UKCA, UL Listed
Lens Color
Green
Mount Type
1, 2 in MNPT
Lighting Technology
Strobe Tube
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP3M-120G
Zoro #
G1872333
UPC #
782979207825
Country of Origin
United States

Dimensions

Overall Diameter
3 1/8 in
Overall Height
5-13/16 in
Lead Length
18 in
Footprint Diameter
3 1/8 in
Overall Depth
5 13/16 in

Details

Item
Warning Light
Light Color
Green
Standards
CE, CSA Certified, cUL Listed, UKCA, UL Listed
Lens Color
Green
Mount Type
1, 2 in MNPT
Lighting Technology
Strobe Tube
IP Rating
IP66, IP69K
Lens Material
Polycarbonate
Electrical Connection
Wire Leads
Mount Style
Surface Mount
Voltage
120V AC
Flashes per Minute
80
Lamp Life
7,000 hrs
Mounting
(M) 1/2 in NPT w/Locknut
Lens Design
Screw-on Dome
Rating
IP66, NEMA 4X
Light Output
2.2 Joules
Housing Material
Polycarbonate
Power Source
Wire
Features
Conformal Coated PCBA
Application
Control Panel
Housing Color
Black
Includes
Surface Gasket
Product Type
Strobe Light
Connection Type
Wire Leads
NEMA Rating
NEMA 4X
Mounting Style
Surface Mount
Light Operating Mode
Strobe
Footprint Shape
Circle
Includes Mounting Hardware
Mounting Hardware Included
Light Intensity
175,000 cd
Requires Base
Base Not Required
Operating Temperature - Maximum
150 Degrees F
Brightness Selection
Fixed Brightness
Operating Temperature - Minimum
-31 Degrees F
Mounting Mechanism
1/2 in MNPT
Lifespan
4,000 hr
Operating Current
0.100 A @ 120V AC
Lens Shape
Dome
Control Protocol
Direct Wire
Maximum Operating Temperature
150 Degrees F
Current
0.100 A @ 120V AC
Minimum Operating Temperature
-31 Degrees F

Description

Warning Light, Color Green, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 2.2 Joules, Lamp Life 7,000 hr, Lens Design Screw-on Dome, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting (M) 1/2 in NPT w/Locknut, Operating Temp. -31 Degrees to 150 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 0.10A AC, Height 5 13/16 in, Voltage 120V AC
