Shop FEDERAL SIGNAL

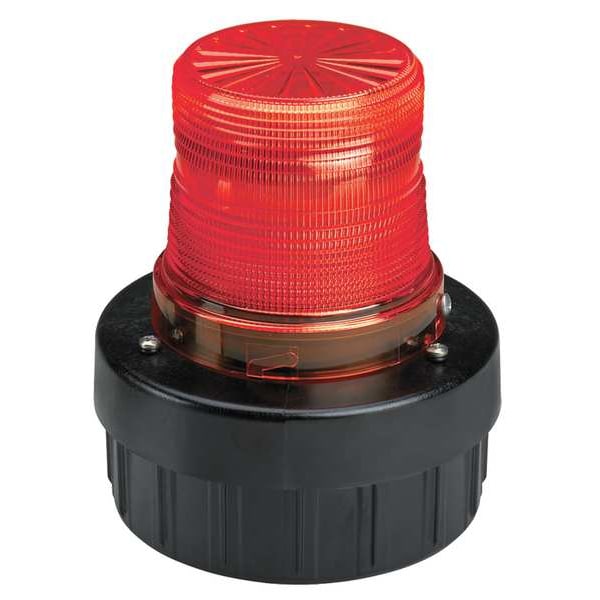

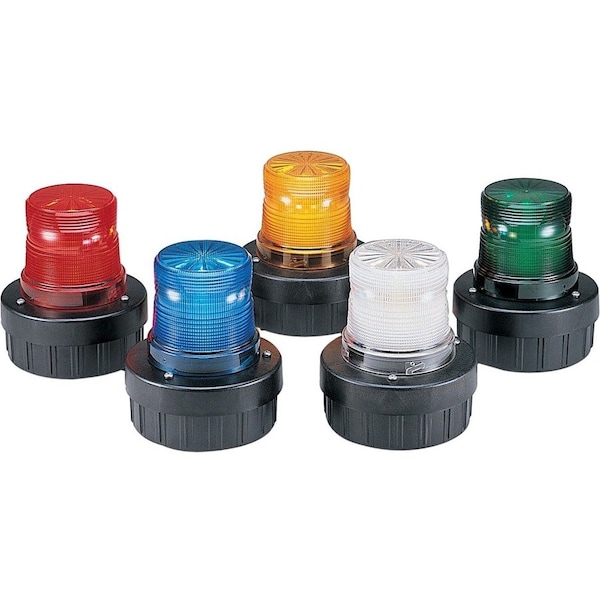

Warning Light w/Sound, LED, Red, 24VDC

  • Mfr # AV1-LED-024R

  • Zoro # G6505283

product price:
$
297.99
/ea
Free Shipping & Returns

Key Features

Light Color
Red
Lens Color
Red
Mount Type
1, 2 in NPT
Lighting Technology
LED
Overall Diameter
5 3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AV1-LED-024R
Zoro #
G6505283
UPC #
782979227557
Country of Origin
United States

Dimensions

Overall Diameter
5 3/4 in
Overall Height
6-12/25 in
Footprint Diameter
5 3/4 in
Overall Depth
6 1/2 in

Details

Item
Warning Light
Light Color
Red
Lens Color
Red
Mount Type
1, 2 in NPT
Lighting Technology
LED
Lens Material
Fresnel Dome
Electrical Connection
Wire Leads
Mount Style
Surface Mount
Flashes per Minute
60, 75
Lens Design
Fresnel
Standards
cUL Listed, cULus Listed, UL Listed
Power Source
Wire
Mounting
Surface
Lamp Life
60,000 hr
Includes
Lens Gasket, Surface Mount Gasket
Housing Material
Polycarbonate
Application
Signaling System
Housing Color
Black
Features
Internal Buzzer Produces 85 dBA at 10 ft (95 dBA at 1m), PLC Compatible, Twist-Off Lens
Rating
Type 3R
Voltage
24V DC
Material
Fresnel Dome
Product Type
Warning Light
Connection Type
Wire Leads
Mounting Style
Surface Mount
NEMA Rating
NEMA 3R
Requires Base
Base Not Required
Control Protocol
Direct Wire
Light Source
LED
Mounting Mechanism
1/2 in NPT
Footprint Shape
Circle
Operating Temperature - Maximum
150 Degrees F
Operating Current
0.270 A @ 24V DC
Light Operating Mode
Flashing
Operating Temperature - Minimum
-31 Degrees F
Lens Shape
Dome
Water Resistance
Water Resistant
Lifespan
50,000 hr
Includes Mounting Hardware
No Mounting Hardware
Brightness Selection
Fixed Brightness
Light Intensity
125 cd
Current
0.270 A @ 24V DC
Maximum Operating Temperature
150 Degrees F
Minimum Operating Temperature
-31 Degrees F
Power Source - TS Only
Wire
Power Source - old
Wire

Description

Warning Light, Color Red, Lamp Type LED, Flashes per Minute 60, 75, Lamp Life 60,000 hr, Lens Design Fresnel, Lens Material Fresnel Dome, Housing Material Polycarbonate, Mounting Surface, Operating Temp. -31 Degrees to 150 Degrees F, Power Source Wire, Current Drawn .27A AC, Width 5 19/25 in, Height 6 12/25 in
