Shop FENNER DRIVES

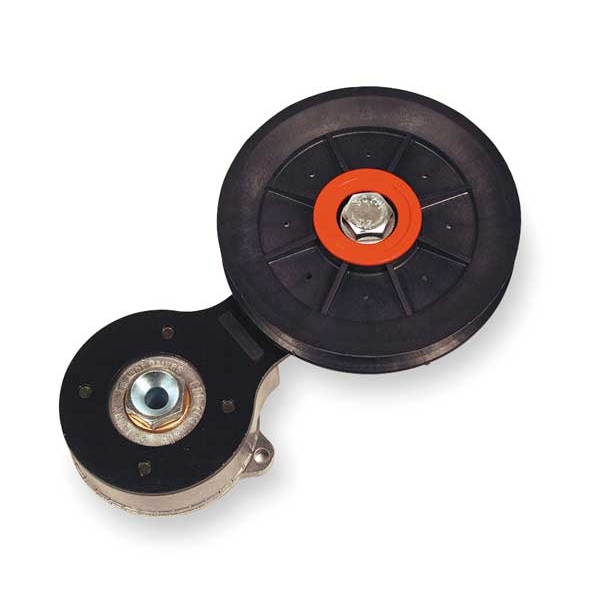

Self-Adjusting Tensioner, 5 in OD

  • Mfr # FS0566

  • Zoro # G2355105

product price:
$
154.99
/ea
Free Shipping & Returns

Key Features

V-Belt Size Range
B
Insert
Alloy Steel Torsional Wrapped Spring Which May Be Reversed To Allow Bi-directional Use.
Force Range (Lbs.)
0 to 42
Mounting Hole (In.)
2/5 in
Dimension B (In.)
0.26 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FS0566
Zoro #
G2355105
UPC #
-
Country of Origin
United States

Dimensions

V-Belt Size Range
B
Dimension B (In.)
0.26 in
Dimension G (In.)
0.4 in
Dimension T (In.)
1.37 in
Dimension A (In.)
2.12 in
Dimension D (In.)
3.34 in
Dimension E (In.)
8.69 in
Dimension C (In.)
1.19 in
Idler Outside Dia.
5.04 in
Mount Hole Diameter
33/64 in
Overall Depth
2.12 in
Arm Length to Hole Center
4.5 in
Base Diameter
3.34 in
Pulley Outside Diameter
5 in
For V-Belt Size
B
Overall Length
8.69 in
Wire Rope Length
8.69 in
Length
8.69 in

Details

Item
Self-Adjusting Tensioner
Insert
Alloy Steel Torsional Wrapped Spring Which May Be Reversed To Allow Bi-directional Use.
Force Range (Lbs.)
0 to 42
Mounting Hole (In.)
2/5 in
Function
Self-Adjusting Tensioner Eliminates Need For Regular Manual Retensioing
Tensioning Arm
Deflects Up To 45 Degrees Either Side Of Its Neutral Position Allowing A Pretension Force That Self-Adjusts An Idler To Everyday Elongation Of Chain Or Belt While Dampening Vibration In The Drive
Temp. Range (F)
32 to 225
Application
V-Belt Drives
Includes
RT3001 Tensioner, VA5001 Pulley
Arm Material
Aluminum
Minimum Tension Force
0 lbf
Product Type
Rotary Tensioner & Idler Pulley Assembly
Features
Self-Retensioning
Housing Material
Aluminum
Arm Rotation
70 Degrees
Maximum Tension Force
42 lbf

Description

Self-Adjusting Tensioner, Arm Rotation 70 Degrees , For Chain Number Not Applicable, For V-Belt Size B, Pulley Outside Diameter 5 in, Maximum Tension Force 42 lbf, Arm Length to Hole Center 4.5 in, Arm Material Aluminum, Base Diameter 3.34 in, Features Self-Retensioning, Housing Material Aluminum, Includes RT3001 Tensioner, VA5001 Pulley, Minimum Tension Force 0 lbf, Mount Hole Diameter 33/64 in, Overall Depth 2.12 in, Overall Length 8.69 in, Product Type Rotary Tensioner & Idler Pulley Assembly
