Shop FERNCO

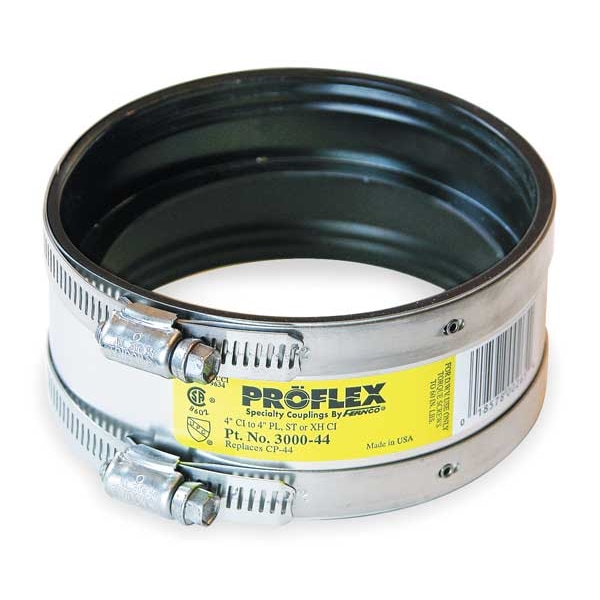

Shielded Coupling, For Pipe Size 4"

  • Mfr # 3000-44

  • Zoro # G0315822

product price:  $12.59
/ea

Key Features

Pipe Size - Pipe Fitting
4"
Specific Fitting Shape
Coupler
Pipe Fitting Material
300 Stainless Steel, Neoprene
Basic Pipe Fitting Material
Metal and Rubber
Basic Pipe Fitting Shape
Coupler
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3000-44
Zoro #
G0315822
UPC #
10018578015835
Country of Origin
United States

Dimensions

Pipe Size - Pipe Fitting
4"
Pipe Size (Fittings)
4"
Pipe Fitting Length
2-1/8"
Inside Dia.
4-27/64" x 4-33/64"
Fitting Length
2-1/8"
Pipe Size
4"
Fitting Side B Inside Diameter
4 1/2 in
Fitting Side A Nominal Pipe Size
4 in
Fitting Side B Nominal Pipe Size
4 in
Fitting Side A Outside Diameter
4 11/16 in
Fitting Side B Outside Diameter
4 11/16 in
Overall Length
2 1/8 in
For Nominal Pipe Size
4 in
Fitting Side A Inside Diameter
4 3/8 in
Side 2 Outside Diameter
4 11/16 in
Side 2 Inside Diameter
4 7/16 in
Side 1 Outside Diameter
4 11/16 in
Side 1 Inside Diameter
4 23/64 in
Side 2 Nominal Pipe Size
4 in
Side 1 Nominal Pipe Size
4 in
Wire Rope Length
2 1/8 in

Details

Specific Fitting Shape
Coupler
Pipe Fitting Material
300 Stainless Steel, Neoprene
Basic Pipe Fitting Material
Metal and Rubber
Basic Pipe Fitting Shape
Coupler
Item
Shielded Coupling
Specific Pipe Fitting Shape
Coupler
Resistant To
Chemicals, Fungus Growth and Normal Sewer Gases, Ultraviolet Rays
Max. Pressure
4.3 psi
Standards
ASTM C1460
Fittings Sub-Category
Couplers
Max. Temp.
180 Degrees F
Band Material
301 Stainless Steel
Fitting Side A Gender
Female
Clamp Type
Interlocked Worm Gear
Temp. Range
180 Degrees F
Application
Non-Potable Water
Color
Black
Maximum Operating Pressure
4.3 psi
Number of Clamps included
2
Clamp Material
Stainless Steel
Fitting Side B Gender
Female
Includes Shield
Shield Included
Includes Clamp
Clamp Included
Shield Material
Stainless Steel
Connector Type
Coupling
Fitting Material
Neoprene
Side 2 Connection Type
Slip-On
Side 1 Connection Type
Slip-On
Reinforcement Material
Stainless Steel
Type
Straight
Clamp Band Material Grade
300
For Fluid Type
Non-Potable Water
For Material Type
Iron x PVC, Steel
For Location
Above Ground
Maximum Operating Temperature
180 Degrees F
Side 2 Connection Gender
Female
Side 1 Connection Gender
Female
Wall Type
Reinforced

Description

Shielded Transition Coupling, For Nominal Pipe Size 4 in, Neoprene, 4 in, 4 3/8 in, 4 11/16 in, Female, 4 in, 4 1/2 in, 4 11/16 in, Female, 2 1/8 in Overall Length

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
