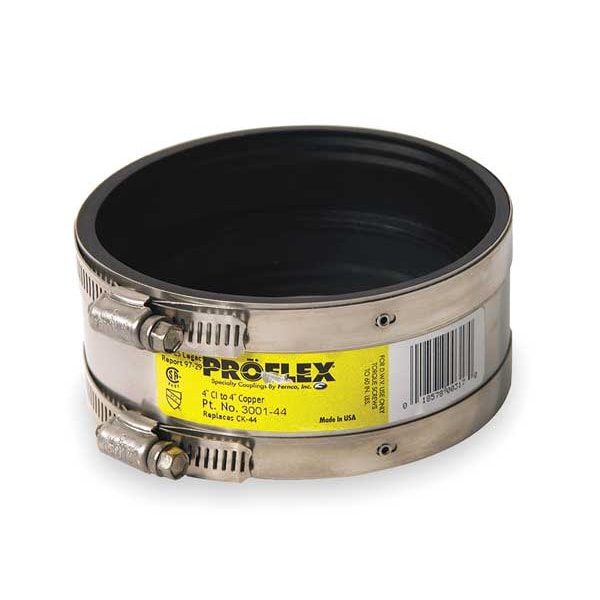

Fernco Shielded Coupling, For Pipe Size 4" x 4" 3001-44 - main
Shop FERNCO

Shielded Coupling, For Pipe Size 4" x 4"

  • Mfr # 3001-44

  • Zoro # G1139397

product price:  $15.99
/ea

Key Features

Pipe Size - Pipe Fitting
4"
Specific Fitting Shape
Coupler
Pipe Fitting Material
300 Stainless Steel, Neoprene
Basic Pipe Fitting Material
Plastic
Basic Pipe Fitting Shape
Coupler
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3001-44
Zoro #
G1139397
UPC #
018578015913
Country of Origin
United States

Dimensions

Pipe Size - Pipe Fitting
4"
Pipe Size (Fittings)
4"
Fitting Length
2-1/8"
Inside Dia.
4-25/64" x 4-9/64"
Pipe Fitting Length
2-1/8"
Fitting Side A Nominal Pipe Size
4 in
Fitting Side B Nominal Pipe Size
4 in
Fitting Side B Inside Diameter
4 1/8 in
Fitting Side A Outside Diameter
4 3/4 in
Fitting Side A Inside Diameter
4 3/8 in
Fitting Side B Outside Diameter
4 3/4 in
Overall Length
2 1/8 in
For Nominal Pipe Size
4 in
Side 2 Outside Diameter
4 3/4 in
Side 1 Inside Diameter
4 5/16 in
Side 1 Nominal Pipe Size
4 in
Side 2 Nominal Pipe Size
4 in
Side 1 Outside Diameter
4 3/4 in
Side 2 Inside Diameter
4 1/16 in

Details

Specific Fitting Shape
Coupler
Pipe Fitting Material
300 Stainless Steel, Neoprene
Basic Pipe Fitting Material
Plastic
Basic Pipe Fitting Shape
Coupler
Item
Shielded Coupling
Fittings Sub-Category
Couplers
Standards
ASTM C1460
Resistant To
Chemicals, Fungus Growth and Normal Sewer Gases, Ultraviolet Rays
Max. Temp.
180 Degrees F
Max. Pressure
4.3 psi
Specific Pipe Fitting Shape
Coupler
Band Material
300 Stainless Steel
Shield Material
Stainless Steel
Fitting Side B Gender
Female
Maximum Operating Pressure
4.3 psi
Application
Non-Potable Water
Number of Clamps included
2
Clamp Type
Interlocked Worm Gear
Color
Black
Clamp Material
Stainless Steel
Includes Clamp
Clamp Included
Temp. Range
180 Degrees F
Includes Shield
Shield Included
Fitting Side A Gender
Female
Side 1 Connection Type
Slip-On
Side 2 Connection Gender
Female
Wall Type
Reinforced
Side 1 Connection Gender
Female
Side 2 Connection Type
Slip-On
Maximum Operating Temperature
180 Degrees F
For Fluid Type
Non-Potable Water
For Material Type
Copper x Iron
Connector Type
Coupling
For Location
Above Ground
Clamp Band Material Grade
300
Reinforcement Material
Stainless Steel
Type
Straight
Fitting Material
Neoprene

Description

Shielded Transition Coupling, For Nominal Pipe Size 4 in, Neoprene, 4 in, 4 3/8 in, 4 3/4 in, Female, 4 in, 4 1/8 in, 4 3/4 in, Female, 2 1/8 in Overall Length

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
