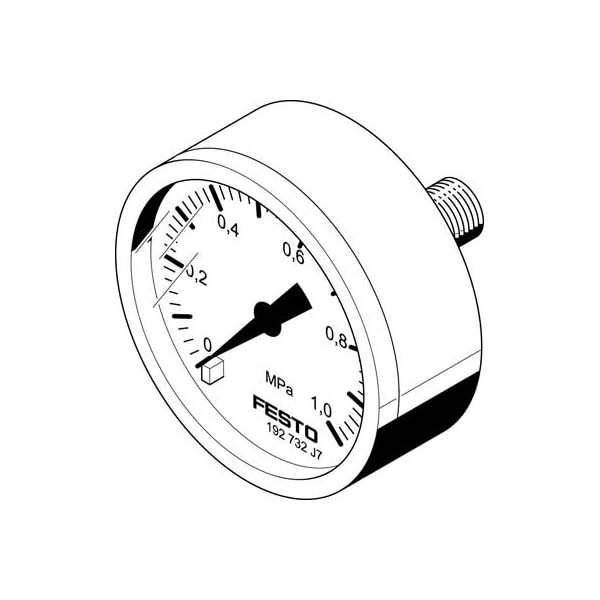

Pressure Gauge MA-40-1-G1/8-MPA
Mfr # MA-40-1-G1/8-MPA
Zoro # G702717975
product price: $26.51
/eaKey Features
Measurement accuracy class
2.5
Primary Pressure Range
0 psi to 145 psi
Housing material
ABS
Display range
0 MPa to 1 MPa
Nominal Dial Size
40 ga
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MA-40-1-G1/8-MPA
Zoro #
G702717975
UPC #
-
Country of Origin
Poland
Dimensions
Nominal Dial Size
40 ga
Details
Measurement accuracy class
2.5
Primary Pressure Range
0 psi to 145 psi
Housing material
ABS
Display range
0 MPa to 1 MPa
Housing colour
Black
Pneumatic connection
G1/8
Material of screwed plug
Brass
Intermittent load factor
0.66
Connection position
Centered on rear side
Materials in contact with the media
Brass
Ambient temperature
-20 °C to 60 °C
IP/NEMA Rating
IP43
Temperature of medium
-20 °C to 60 °C
Type of mounting
Line installation
Description
Pressure Gauge Ma-40-1-G1/8-Mpa With Display Unit In Mpa. Indicating Range [Mpa]=0 - 1 Mpa, Conforms To Standard=En 837-1, Nominal Size Of Pressure Gauge=40, Design Structure=Bourdon-Tube Pressure Gauge, Mounting Type=Line Installation
