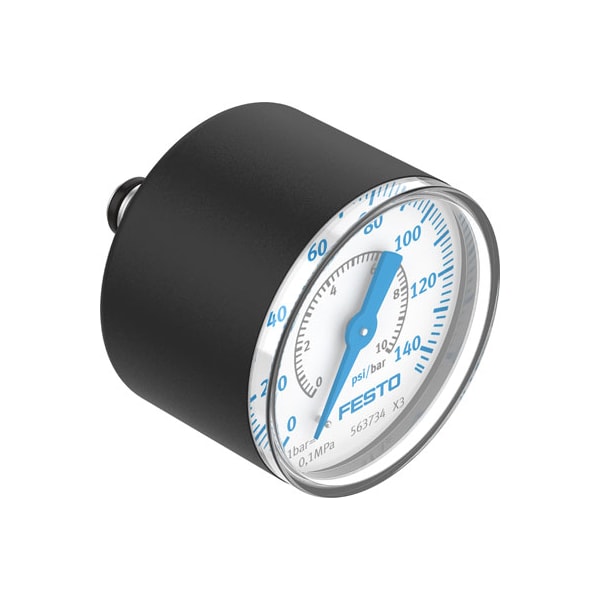

Pressure Gauge PAGN-40-145P-P10
- Mfr # PAGN-40-145P-P10
- Zoro # G702728902
product price:Â
$
24.29
/ea
Key Features
Primary Pressure Range
0 bar to 10 bar
IP/NEMA Rating
IP43
Measurement accuracy class
2.5
Housing colour
Black
Pneumatic connection
Cartridge 10 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PAGN-40-145P-P10
- Zoro #
- G702728902
- UPC #
- -
- Country of Origin
- Poland
Dimensions
- Nominal Dial Size
- 40 ga
Details
- Primary Pressure Range
- 0 bar to 10 bar
- IP/NEMA Rating
- IP43
- Measurement accuracy class
- 2.5
- Housing colour
- Black
- Pneumatic connection
- Cartridge 10 mm
- Display range
- 0 psi to 145 psi
- Housing material
- ABS
- Connection position
- Centered on rear side
- Ambient temperature
- -20 °C to 60 °C
- Type of mounting
- Line installation
- Temperature of medium
- -20 °C to 60 °C
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Intermittent load factor
- 0.66
Description
Pressure Gauge Pagn-40-145P-P10 With Display Unit In Bar And Psi. Indicating Range [Psi]=0 - 145 Psi, Conforms To Standard=En 837-1, Nominal Size Of Pressure Gauge=40, Design Structure=Bourdon-Tube Pressure Gauge, Mounting Type=Line Installation
