Pressure Gauge PAGN-26-232P-P10
Mfr # PAGN-26-232P-P10
Zoro # G302728869
product price: $20.55
/eaKey Features
Nominal Dial Size
26 ga
Primary Pressure Range
0 MPa to 1.6 MPa
IP/NEMA Rating
IP43
Housing material
Polyamide
Pneumatic connection
Cartridge 10 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PAGN-26-232P-P10
Zoro #
G302728869
UPC #
-
Country of Origin
Poland
Dimensions
Nominal Dial Size
26 ga
Details
Primary Pressure Range
0 MPa to 1.6 MPa
IP/NEMA Rating
IP43
Housing material
Polyamide
Pneumatic connection
Cartridge 10 mm
Material of screwed plug
Brass
Ambient temperature
-20 °C to 60 °C
Materials in contact with the media
Brass
Connection position
Centered on rear side
Intermittent load factor
0.66
Housing colour
Black
Display range
0 psi to 232 psi
Measurement accuracy class
4
Temperature of medium
-20 °C to 60 °C
Type of mounting
Line installation
Description

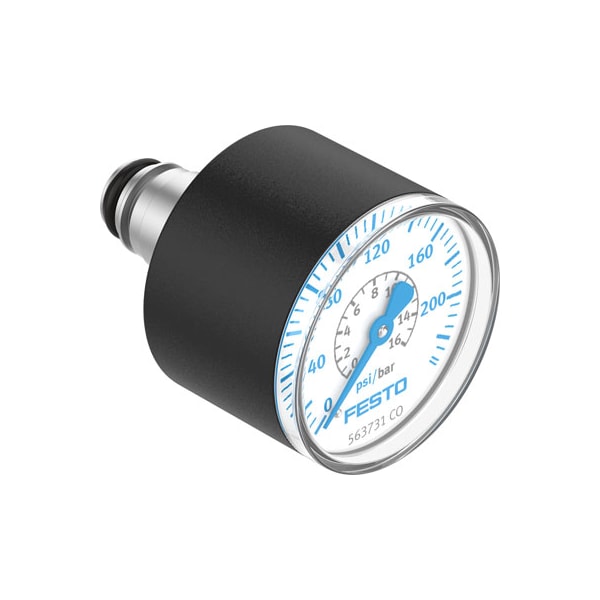

Pressure Gauge Pagn-26-232P-P10 With Display Unit In Bar And Psi. Indicating Range [Psi]=0 - 232 Psi, Nominal Size Of Pressure Gauge=26, Design Structure=Bourdon-Tube Pressure Gauge, Mounting Type=Line Installation, Operating Medium=(* Inert Gases, * Neutral Fluids)
