  5. Power Venter, 115, Galvanized Steel, 7 3/4 in W, 7 1/2 in H, 4 Inlet and Outlet Dia.

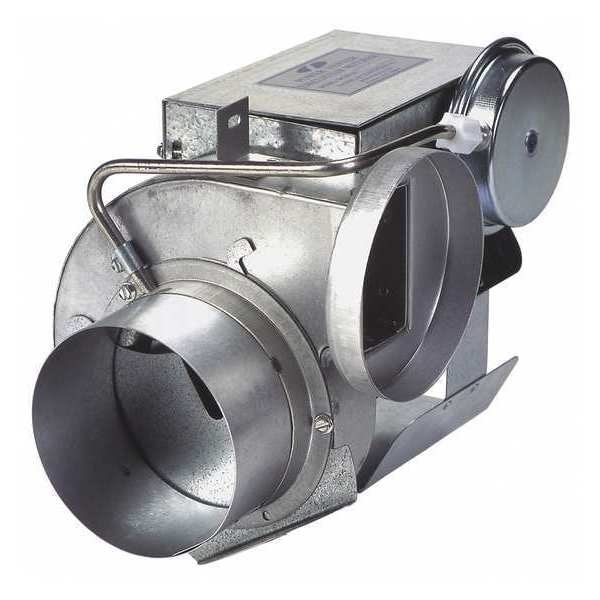

Field Controls Power Venter, 115, Galvanized Steel, 7 3/4 in W, 7 1/2 in H, 4 Inlet and Outlet Dia. PVG-100 - main

Power Venter, 115, Galvanized Steel, 7 3/4 in W, 7 1/2 in H, 4 Inlet and Outlet Dia.

  • Mfr # PVG-100

  • Zoro # G2470925

product price:  $513.10
/ea
Free Shipping & Returns

Key Features

Inlet and Outlet Dia. (In.)
4
Type
Power Venter
Voltage
115
Depth (In.)
10 in
Construction Material
Galvanized Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PVG-100
Zoro #
G2470925
UPC #
090747168101
Country of Origin
United States

Dimensions

Inlet and Outlet Dia. (In.)
4
Depth (In.)
10 in
Height (In.)
7 1/2 in
Vent Pipe Dia. (In.)
4
Width (In.)
7 3/4 in
Max. Pipe Length 300
4
Wheel Diameter
3 3/4 in
Overall Height
7 1/2 in
For Vent Pipe Diameter
4 in
Overall Width
7 3/4 in
Maximum Vent Pipe Diameter
4 in
Outlet Height
2 5/8 in
Overall Depth
7 in
Manufacturer Warranty Length
18 mo
Outlet Diameter
4 in
Inlet Diameter
4 in
Outlet Width
1 1/2 in
Minimum Vent Pipe Diameter
3 in

Details

Item
Power Venter
Type
Power Venter
Voltage
115
Construction Material
Galvanized Steel
Amps
2.1
Includes
4 in MG-1 Draft Control, 4 in Vent Hood, PVG Power Venter
Remarks
Used to Exhaust Heating Appliances
Agency Compliance
ETL
Application
Furnaces
Watts
145 W
Duct Temp. Deg. (F)
550 Degrees F
BtuH Input
100,000
Wheel Type
Forward-Curved
Current
2.1 A
Maximum Heat Input
55,000 BtuH
Minimum Heat Input
25,000 BtuH
Housing Material
Steel
Wheel Material
Steel
For Fuel Type
LP, Natural Gas
Replacement For Manufacturer Model Number
HS1, HST-1, HSUL-1
Market
Residential
Maximum Inlet Air Temperature
550 Degrees F
For Appliance Type
Boilers, Furnaces, Water Heaters
Outlet Shape
Rectangular
Compatible with Brand
Tjernlund
Maximum Motor Speed
3,000 RPM
Airflow @ 0.000 in SP
0.245 cfm
Maximum Heater BTU Input for Gas Appliance
100,000 BtuH
Housing Material Finish
Galvanized
Frequency
60 Hz
Maximum Static Pressure
5/8 in wc
Nameplate Voltage
115V AC
Maximum Fan Speed
3,000 RPM
Phase
1
Standards
cETLus Listed
Motor Type
Permanent Split Capacitor
Power Consumption
145 W
Blower Type
Sidewall Power Venter

Description

Power Venter, Application Furnaces, For Fuel Type LP, Natural Gas, For Appliance Type Boilers, Furnaces, Water Heaters, Maximum Vent Pipe Diameter 4 in, Minimum Vent Pipe Diameter 3 in, Maximum Heater BTU Input for Gas Appliance 100,000 BtuH, Maximum Heater BTU Input for Oil Appliance Not Applicable, Inlet Diameter 4 in, Outlet Diameter 4 in, For Vent Pipe Diameter 4 in, Compatible with Brand Tjernlund, Replacement For Manufacturer Model Number HS1, HST-1, HSUL-1, Nameplate Voltage 115V AC
