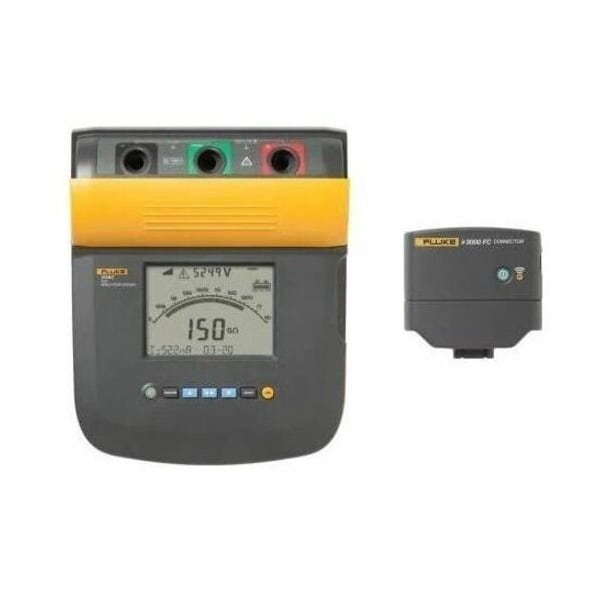

Megohmmeter, 5 kV, Digital, Battery Powered, 5 Mohm to 100 Gohm, USB/Bluetooth Data Logging

  • Mfr # FLUKE-1550C

  • Zoro # G3407354

product price:
$
6,828.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Power Source
Battery
Includes
AC Power Cord, Infrared Adapter with Interface Cable, Soft Carrying Case (Base Models Only), Test Cables with Alligator Clips (Red, Black, Green)
Insulation Resistance Range
5 megaohm to 100 gigohm
Capacitance Range
0.01 to 15 uF
Live Circuit Detection
Greater Than 30V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-1550C
Zoro #
G3407354
UPC #
095969550918
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr
Tool Length
10.6 in
Manufacturer Warranty Length
3 yr
Battery Size
12V
Tool Height
6.3 in
Tool Width
10.9 in

Details

Item
Megohmmeter
Power Source
Battery
Includes
AC Power Cord, Infrared Adapter with Interface Cable, Soft Carrying Case (Base Models Only), Test Cables with Alligator Clips (Red, Black, Green)
Insulation Resistance Range
5 megaohm to 100 gigohm
Capacitance Range
0.01 to 15 uF
Live Circuit Detection
Greater Than 30V
Auto Power Off
Yes
Interface
USB
Data Logging
99 Data Points
Safety Rating
CAT III 1000V, CAT IV 600V
Features
Saves Test Results to the Cloud, Real Time Trending Gives You Easy-to-See Visual Cues, Report Creation Using Fluke Connect Desktop
Display
LCD
Output Test Voltage
50 to 5000V DC
Leakage Current Range
1 mA
Calibration Certificate
None
Green Environmental Attribute
Product is Rechargeable
Communication Protocol
USB
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Parameters Measured
Insulation Resistance
Display Type
Digital
Test Voltage
1,000V DC, 2,500V DC, 250V DC, 5,000V DC, 500V DC
Maximum Capacitance Measured
15 uF
PI/DAR Testing
Yes
Standards
IEC 61326-1, IEC 61326-2-2 CISPR 11
Backlit Digital Display
No
Minimum Capacitance Measured
0.01 uF
Display Screen Type
LCD
Minimum Insulation Resistance
5 megaohm
Insulation Resistance Resolution
5 megaohm to 100 gigaohm
Testing Functions
Insulation Resistance
Maximum Insulation Resistance
100 gigohm
Waterproof
No
IP Rating
IP40
Timed Ramp Voltage Test
Yes
Bluetooth Compatible
Yes
USB Data Download Included
Yes
Live Circuit Voltage
Greater Than30V
Remote Test Probe Included
No
Number of Records Stored
99
Capacitance Auto Discharge
Yes
Dustproof
No
Battery Chemistry
Lead Acid
Greater Than 30V Warning
Yes
Maximum Operating Temperature
122 Degrees F
Minimum DC Voltage Measured
250 V
Includes Batteries
Yes
Operating Voltage
600V AC/DC
Data Logger
Yes
Insulation Limit Alarm
Yes
Maximum DC Voltage Measured
5 kV
Test Current
1 nA to 2mA
Minimum Operating Temperature
-4 Degrees F
Pass/Fail Selection Limits
Yes
Data Output Type
USB
Alert Type
Digital Display, Audible
Calibration Certificate Included
No Certification Included
Maximum AC Voltage Measured
600 V
Live Circuit Voltage Measurement - Maximum
30 V
Input Impedance
1 megaohm
Instrument Style
Briefcase
Live Circuit Voltage Measurement - Minimum
250 V
Power Source - TS Only
Battery
Power Source - old
Battery

Description

The FLUKE-1550C is a battery-operated megohmmeter designed for insulation resistance testing with output test voltage from 50 to 5000V DC. It measures insulation resistance from 5 megaohm to 100 gigohm and supports common test voltage steps of 250V, 500V, 1000V, 2500V, and 5000V DC. This digital LCD instrument also supports PI/DAR testing, timed ramp voltage testing, live circuit detection above 30V, and capacitance measurement, making it suitable for general electrical testing and insulation evaluation.

Key Features of the FLUKE-1550C Megohmmeter:

  • Insulation resistance range: 5 megaohm to 100 gigohm for insulation testing across a wide measurement span.
  • Output test voltage: 50 to 5000V DC, with selectable test voltages including 250V, 500V, 1000V, 2500V, and 5000V DC.
  • Capacitance measurement: 0.01 to 15 uF, with capacitance auto discharge after testing.
  • Data storage: Data logger stores up to 99 records/data points.
  • Connectivity: Bluetooth compatible with USB interface and USB data download included.
  • Data features: Saves test results to the cloud, provides real-time trending visual cues, and supports report creation using Fluke Connect Desktop.
  • Protection and alerts: Live circuit detection greater than 30V, greater than 30V warning, and insulation limit alarm.
  • Safety rating: CAT III 1000V and CAT IV 600V.
  • Power and operation: Battery powered with included 12V lead acid battery and auto power off.
  • Included accessories: AC power cord, infrared adapter with interface cable, soft carrying case, and red, black, and green test cables with alligator clips.
  • Ingress rating: IP40.
