  9. Multimeter, 600 V Max DC, 400 mV Max AC, TRMS, 3,999 Instrument Counts, LCD

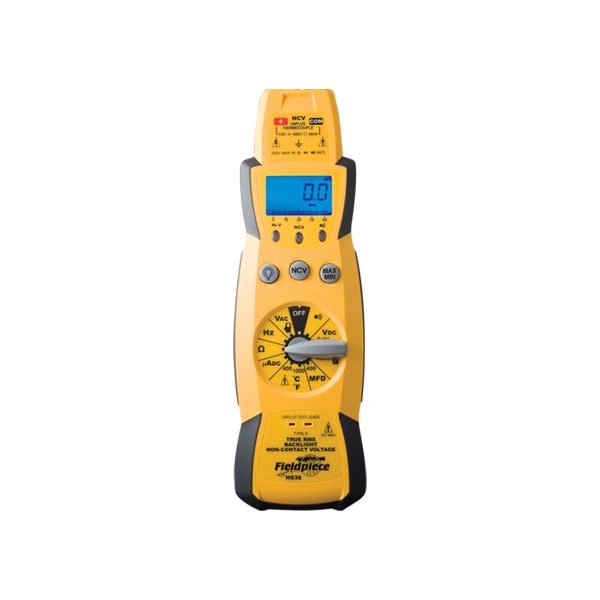

Fieldpiece Multimeter, 600 V Max DC, 400 mV Max AC, TRMS, 3,999 Instrument Counts, LCD HS36 - main

Multimeter, 600 V Max DC, 400 mV Max AC, TRMS, 3,999 Instrument Counts, LCD

  • Mfr # HS36

  • Zoro # G812932664

product price: $386.09
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Instrument Counts
3,999
Includes
9V Battery, ACH4 400 A Clamp Accessory, ADLS2 Deluxe Silicone Test Leads, ANC1 Deluxe Meter Case, ASA2 Short Alligator Lead Extensions, HS36 Expandable True RMS Stick Multimeter With Backlight
Standards
CE, IEC 61010-1 (EN61010-1), UL, UL 61010-1
Auto Power Off
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HS36
Zoro #
G812932664
UPC #
872641000325
Country of Origin
Taiwan, Province of China

Dimensions

Battery Size
9V
Manufacturers Warranty Length
1 yr

Details

Item
Multimeter
Display Type
LCD
Instrument Counts
3,999
Includes
9V Battery, ACH4 400 A Clamp Accessory, ADLS2 Deluxe Silicone Test Leads, ANC1 Deluxe Meter Case, ASA2 Short Alligator Lead Extensions, HS36 Expandable True RMS Stick Multimeter With Backlight
Standards
CE, IEC 61010-1 (EN61010-1), UL, UL 61010-1
Auto Power Off
Yes
Audible Continuity
Yes
Diode Test
Yes
Frequency Measurement Resolution
1 Hz
Maximum DC Voltage Measurement
600 V
Bar Graph Included
Yes
Instrument Safety Rating
CAT III 600V
Battery Access
Yes
Frequency Measurement Accuracy
+/-0.10% Reading + 3 Digit
Temperature Measurement Resolution
0.1 Degrees F
Batteries Included
Yes
Calibration Certificate Included
No
Basic DC Voltage Accuracy
+/-0.50% Reading + 2 Digit
Auto Ranging
Yes
Minimum Temperature Measurement
-30 Degrees F
Battery Voltage
9V
Fuse Access
Yes
Min-Max-Avg Button Included
Yes
Duty Cycle
Less Than70%; Greater Than30%
Maximum Frequency Measurement
40 MHz
Maximum AC Voltage Measurement
600 V
Maximum Storage Temperature
140 Degrees F
Capacitance Measurement Resolution
0.1 uF
Maximum Resistance Measurement
40 megaohm
Minimum AC Voltage Measurement
400 mV
Minimum Operating Temperature
32 Degrees F
Minimum Storage Temperature
-4 Degrees F
Minimum DC Current Measurement
400 uA
DC Voltage Measurement Resolution
0.1 mV
Maximum Capacitance Measurement
400 uF
Minimum DC Voltage Measurement
400 mV
Capacitance Measurement Accuracy
+/-3% Reading + 5 Digit
Temperature Measurement Accuracy
+/-1% + 1.5 Degrees F; +/-1 Degrees F; +/-2% + 4 Degrees F
Battery Chemistry
Alkaline
AC Voltage Measurement Resolution
0.1 mV
Resistance Measurement Resolution
0.1 ohm
AC Response Calculation
TRMS
Parameters Measured
AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Maximum Temperature Measurement
1,000 Degrees F
Waterproof
Yes
Minimum Resistance Measurement
400 ohm
Basic AC Voltage Accuracy
+/-1.20% Reading + 5 Digit (400 mV Range 50 to 60 Hz); +/-1.50% Reading + 5 Digit; +/-2% Reading + 5 Digit (on 600 V Range)
Basic DC Current Accuracy
+/-1% Reading + 2 Digit
Maximum DC Current Measurement
4,000 uA
DC Current Measurement Resolution
0.1 uA
Resistance Measurement Accuracy
+/-1% Reading + 4 Digit (400 ohm to 400 kiloohm); +/-1.50% Reading + 4 Digit (4 megaohm); +/-3% Reading + 5 Digit (40 megaohm)
Minimum Frequency Measurement
4 kHz

Description

Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.20 Percent Reading + 5 Digit (400 mV Range 50 to 60 Hz); +/-1.50 Percent Reading + 5 Digit; +/-2 Percent Reading + 5 Digit (on 600 V Range), Basic DC Voltage Accuracy +/-0.50 Percent Reading + 2 Digit, Basic DC Current Accuracy +/-1 Percent Reading + 2 Digit, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 3,999

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
