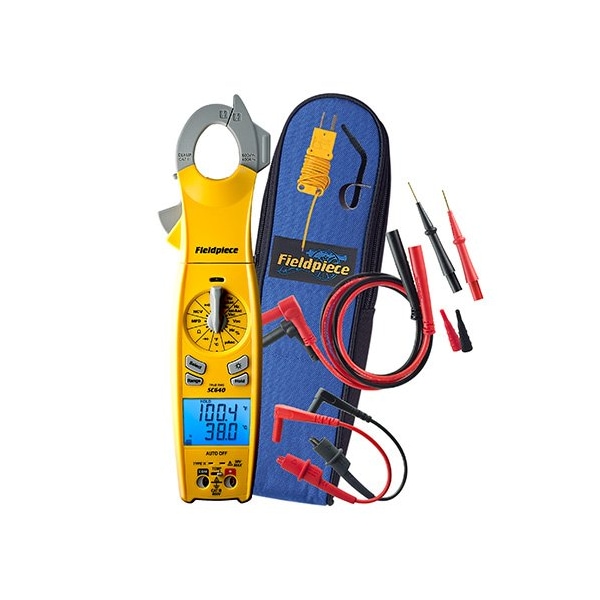

Fieldpiece DigitalClampMeter, TRMS, 400A, 600VAC SC640 - main

DigitalClampMeter, TRMS, 400A, 600VAC

  • Mfr # SC640

  • Zoro # G612932642

product price: $320.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.2 in
Battery Size
9V
Includes
9V Battery, ADLS2 Deluxe Silicone Lead Set With Gold Plated Tips and Removable Sheath, ANC7 Padded Case, ASA2 Short Alligator Lead Extensions, ATB1 Wrap Tab Type K Thermocouple, SC640 Meter, Velcro Strap
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SC640
Zoro #
G612932642
UPC #
872641003067
Country of Origin
Taiwan, Province of China

Dimensions

Battery Size
9V
Manufacturers Warranty Length
1 yr
Overall Height
247 mm
Overall Width
79 mm

Details

Item
Swivel Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.2 in
Includes
9V Battery, ADLS2 Deluxe Silicone Lead Set With Gold Plated Tips and Removable Sheath, ANC7 Padded Case, ASA2 Short Alligator Lead Extensions, ATB1 Wrap Tab Type K Thermocouple, SC640 Meter, Velcro Strap
Maximum DC Voltage Measurement
600 V
Minimum Capacitance Measurement
5 uF
Minimum AC Current Measurement
50 A
Special Features
60 Second Duration With Auto-Off, Low Battery Indication
Minimum DC Voltage Measurement
500 mV
Minimum AC Voltage Measurement
500 mV
Battery Voltage
9V
Basic AC Current Accuracy
+/-2% + 10
DC Voltage Measurement Resolution
0.1 mV
AC Voltage Measurement Resolution
0.1 mV
Battery Chemistry
Alkaline
Time of Day Clock
Yes
Display Type
LCD
Frequency Measurement Accuracy
+/-0.10% + 5
Maximum Storage Temperature
140 Degrees F
Minimum Resistance Measurement
500 ohm
Frequency Counter
10 Hz to 400 Hz
Basic AC Voltage Accuracy
1.20% + 8 (500 mV Range 50 to 60 Hz); +/- 1.20% + 8 (5V, 50V, 500V); +/- 1.50% + 8 (600 V)
Thermometer Type
Type K Thermocouple
Auto Power Off
Yes
Diode Test
Yes
AC Response Calculation
TRMS
Battery Access
Yes
Maximum Capacitance Measurement
5 mF
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Maximum AC Current Measurement
400 A
Jaw Style
Clamp On
AC Current Measurement Resolution
0.01 A
Minimum Frequency Measurement
10 Hz
Maximum AC Voltage Measurement
600 V
Instrument Counts
5,000
Data Hold
Yes
Standards
UL 61010-031, UL Listed
Basic DC Voltage Accuracy
+/-0.50% + 2
Maximum DC Current Measurement
500 uA
Basic DC Current Accuracy
+/-1% + 2
Resistance Measurement Accuracy
+/-1% + 5 (500 ohm to 500 kiloohm); +/-1.50% + 5 (5 megaohm); +/-3% + 5 (50 megaohm)
Maximum Frequency Measurement
400 Hz
Non-Contact Voltage Detector
Yes
DC Current Measurement Resolution
0.1 uA
Batteries Included
Yes
Minimum Storage Temperature
-4 Degrees F
Capacitance Measurement Accuracy
+/-3% + 15 (5 uF); +/-3% + 5 (50 uF to 500 uF); +/-5% + 20 (5 mF)
Inrush Current Measurable
Yes
Maximum Resistance Measurement
50 megaohm
Memory
Data Hold
Minimum Operating Temperature
32 Degrees F
Frequency Measurement Resolution
0.1 Hz
Capacitance Measurement Resolution
1 nF
Resistance Measurement Resolution
0.1 ohm

Description

Digital Clamp Meter, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 500 uA, Maximum DC Voltage Measurement 600 V, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature, Intrinsically Safe No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 1.2 in
