Shop FLUKE

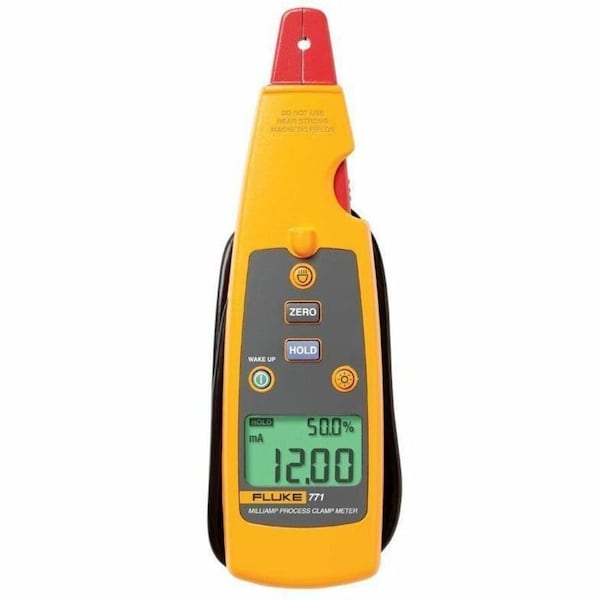

Digital Clamp Meter, Dual Backlit, 99 mA A, 0.3 in (8 mm) Jaw Capacity, CAT II 300V Safety Rating

  • Mfr # FLUKE-771

  • Zoro # G3449214

product price:
$
1,066.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Digital/Analog
Digital
Max. AC Amps
99 mA
Clamp Meter Jaw Style
Clamp On
Jaw Capacity
0.3 in (8 mm)
Temp. Range
14 Degrees to 122 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-771
Zoro #
G3449214
UPC #
095969349697
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr for Clamp and Cable, 3 yr for Electronics
Overall Height
8.35 in
Battery Size
AA
Overall Width
38 in

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
99 mA
Clamp Meter Jaw Style
Clamp On
Jaw Capacity
0.3 in (8 mm)
Temp. Range
14 Degrees to 122 Degrees F
Safety Rating
CAT II 300V
Display
Dual Backlit
Jaw Opening
0.3 in
Max. DC Amps
99 mA
Special Features
Best in Class 0.2% Accuracy, Delivers 0.01 mA Resolution and Sensitivity, Detachable Clamp for Measurements in Tight Locations, Measures 4 to 20 mA Signals without Breaking the Loop, Measures mA Signals for PLC and Control System Analog I/O
Data Hold
Yes
Operating Temp.
14 Degrees to 130 Degrees F
Battery Type
AA
AC Response
Average
Standards
CE, CSA
Auto Power Off
Yes
Counts
2,099
Auto Ranging
Yes
Includes
Detachable Clamp
Data Logging
Yes
Audible Continuity
No
Maximum Storage Temperature
140 Degrees F
Jaw Style
Clamp
Battery Access
Yes
Batteries Included
Yes
Basic DC Current Accuracy
0.2% + 2 counts
Instrument Counts
2,099
Calibration Certificate Included
No Certification Included
Thermal Imaging
No
Waterproof
No
Current Leakage Testing
No
Minimum Operating Temperature
14 Degrees F
Dustproof
No
Parameters Measured
AC Current, DC Current
Bluetooth Compatible
No
Intrinsically Safe
No
Battery Chemistry
Alkaline
Removable Screen
No
Maximum DC Current Measurement
100 mA
Display Type
Backlit LCD
Maximum AC Current Measurement
100 mA
AC Response Calculation
Average
IP Rating
IP40
Maximum Operating Temperature
122 Degrees F
Minimum AC Current Measurement
0.01 mA
Current Units
mA
Minimum DC Current Measurement
0.01 mA
Includes Auto Sensing
No Auto Sensing Included
Jaw Detachability
Detachable
Maximum Frequency Measurement
50 Hz
CAT Safety Rating
CAT II 300V

Description

Digital Clamp Meter, Audible Continuity No, Safety Rating CAT II 300V, AC Response Calculation Average, Maximum AC Current Measurement 100 mA, Maximum DC Current Measurement 100 mA, Maximum DC Voltage Measurement Not Applicable, Current Leakage Testing No, IP Rating IP40, Parameters Measured AC Current, DC Current, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 0.3 in, Jaw Style Detachable
