Shop FILL-RITE

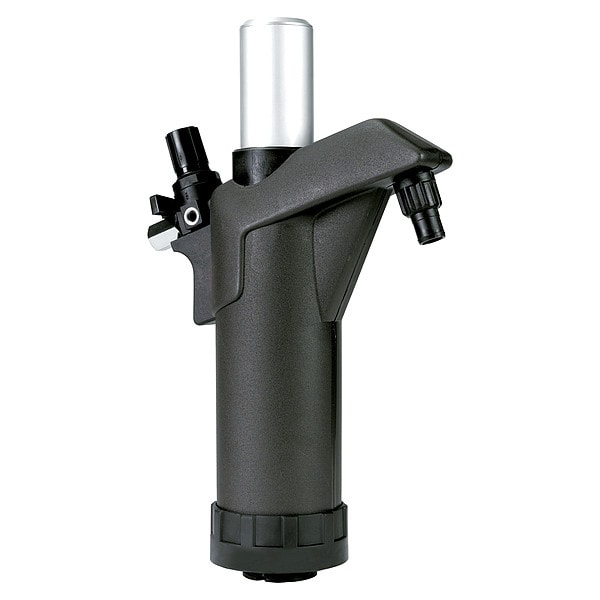

Air Drum Pump, Pneumatic, DEF, Size 1 In

  • Mfr # FRAP32V

  • Zoro # G2522475

product price:  $422.99
/ea
Free Shipping & Returns

Key Features

For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oil, Kerosene, Motor Oil, Stoddard Solvent, Windshield Washer Fluid
For Container Size
55 gal
Max. Flow Rate
30 gpm
Max. Viscosity
50 SUS
Diesel Exhaust Fluid Compatible
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FRAP32V
Zoro #
G2522475
UPC #
089404215029
Country of Origin
United Kingdom

Dimensions

For Container Size
55 gal
Inlet Size
1"
Suction Tube Length
35 1/2 in
Air Inlet Size
1/4 in BSP
Spout Connection Size
3/4 in
Overall Length
10 in
Spout Length
1 in
Height Above Container
13 in
Air Outlet Size
3/4 in
Bung Connection Dia.
2 in
Adapter Connection Diameter
2 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
10 in

Details

Item
Air Drum Pump
For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oil, Kerosene, Motor Oil, Stoddard Solvent, Windshield Washer Fluid
Max. Flow Rate
30 gpm
Max. Viscosity
50 SUS
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Flourocarbon, Polypropylene, Stainless Steel
Includes Suction Tube
Yes
For Use With
DEF, Gear Lube, Hydraulic Oils, Light Oils
Discharge Tube Outlet ID
3/4 in
Discharge Tube Outlet OD
7/8 in
Max. Flow GPM
6.5 gpm
Delivers
6.5gpm
Includes
Telescoping Suction Tube
Type
Pneumatic Piston
Max. Air Inlet (PSI)
100
Seal Material
Fluorocarbon
Adapter Material
Polypropylene
Metered
No
Suction Tube Material
Polypropylene
Features
Also compatilble with engine oil, hydraulic oil, mild acids, water, anti-freeze, diesel, pariffin and degreasers
Self-Priming
Yes
Includes Bung Adapter
Yes
Pump Connection ID
1 in
Variable Speed
No
Min. Air Pressure
30 psi
Not Recommended Chemicals
Discharge Connection Type
Hose Barb
Pump Connection Type
FNPT
Housing Material - Pumps
Polypropylene
Max. Head Pressure
50 psi
Spout Material
Polypropylene
Power Source
Air
Max. Oil Flow
4 gpm
Noise Level
74 dB
Pump Connection OD
1 1/8 in
Includes Nozzle
No
Food Grade
No
Spout Connection Type
Hose Barb
Includes Spout
Yes
Includes Discharge Hose
No
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Kerosene, Motor Oil, Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid
Max. Air Pressure
100 psi
Suction Tube ID
1 in
Max. Fluid Temp.
120 Degrees F
Runs Dry
Yes
For Container Type
Drum
Suction Tube OD
1 1/8 in
Explosion Proof
No
Gear Lube
NT
Adapter Connection Type
MNPT
Max. Head - Pumps
6 ft
Pump Ratio
1:1
Hose Tube Material
Polypropylene
Maximum Head Pressure
50 psi
Includes Follower Plate
No Follower Plate Included
Maximum Air Pressure
100 psi
Wetted Material
Flourocarbon/PP/Stainless Steel
Chemical Compatibility
Antifreeze Coolant, Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Petroleum Oil, Synthetic Oil, Kerosene, Motor Oil, Stoddard Solvent, Windshield Washer Fluid
Maximum Fluid Temperature
120 Degrees F
Maximum Viscosity
50 SUS
Maximum Outlet Pressure
100 psi
Pressure Ratio
1:1
Adapter Connection Standard
MNPT
Air Inlet Connection Type
BSP
Duty Cycle
Continuous
Mounting Bracket Included
No Mounting Bracket Included
Maximum Flow Rate
30 gpm
Meter Type Included
No Meter Included
Minimum Air Pressure
30 psi
Static Protection
No Grounding Line Included
For SAE Viscosity Grade - Maximum
10W-30
Housing Material
Polypropylene
Container Cover Type Included
No Cover Included
Hazardous Location Class
Not Rated
Maximum Head
6 ft
Air Consumption
10 cfm
Maximum Oil Flow
4 gpm
Pump Technology
Plunger
Power Source - TS Only
Air

Description

Air Drum Pump, Max. Air Pressure 100 psi, Spout Connection Size 3/4 in, Suction Tube Material Polypropylene, Self-Priming Yes, Overall Length 10 in, Explosion Proof No, Discharge Connection Type Hose Barb, Spout Length 1 in, Food Grade No, Thermal Protection Not Applicable, Air Outlet Size 3/4 in, Bung Connection Dia. 2 in, Air Consumption 10 cfm, Hose Length Not Applicable, Variable Speed No, Includes Discharge Hose No, Noise Level 74 dB, Max. Viscosity 50 SUS, Adapter Connection Type MNPT
