  5. Hand Operated Drum Pump, MNPT, With Hose & Nozzle, 20 gal per 100 strokes Max. Flow Rate

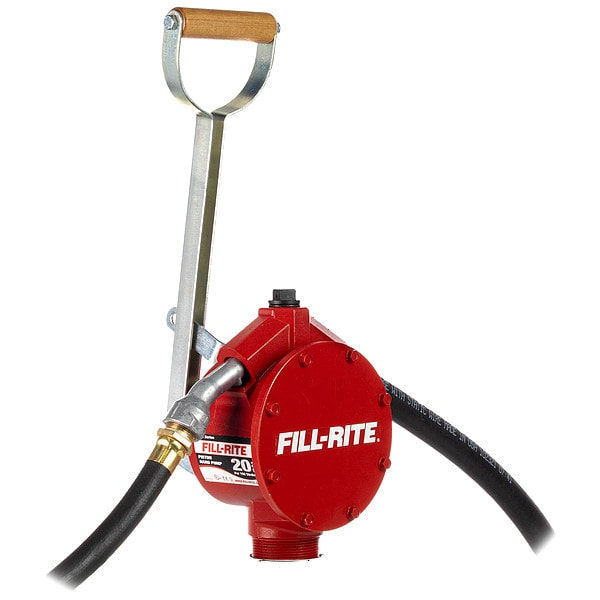

Fill-Rite Hand Operated Drum Pump, MNPT, With Hose & Nozzle, 20 gal per 100 strokes Max. Flow Rate FR152 - main

Hand Operated Drum Pump, MNPT, With Hose & Nozzle, 20 gal per 100 strokes Max. Flow Rate

  • Mfr # FR152

  • Zoro # G1117383

product price:  $249.99
/ea
Free Shipping & Returns

Key Features

Action Type
Lever
For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
For Container Size
55 gal
Max. Flow Rate
20 gal per 100 strokes
Max. Viscosity
1,500 SUS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FR152
Zoro #
G1117383
UPC #
089404004289
Country of Origin
United States

Dimensions

For Container Size
55 gal
Overall Width
6-1/2"
Overall Length
19"
Hose Length
8 ft
Overall Height
8"
Inlet Size
1"
Suction Tube Length
20 in to 34 1/2 in
Hose Inside Dia.
5/8 in
Height Above Container
19 1/2 in
Bung Connection Dia.
2 in
Hose Outside Dia.
7/8 in
Spout Connection Size
3/4 in

Details

Item
Hand Operated Drum Pump
Action Type
Lever
For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
Max. Flow Rate
20 gal per 100 strokes
Max. Viscosity
1,500 SUS
Diesel Exhaust Fluid Compatible
No
Wetted Materials
301 Stainless Steel, Aluminum, Buna-N, PTFE, Zinc Plated Steel
Includes Suction Tube
Yes
For Use With
Ideal for Gasoline, Diesel Fuel, Light Oil and Kerosene
Discharge Tube Outlet ID
3/4 in
Hose Tube Material
Nitrile
Discharge Tube Outlet OD
7/8 in
Features
Flow Direction Can Be Reversed, Piston Action
Includes
5/8 in x 8 ft. Hose with Static Ground Wire, Nozzle Spout 3/4 in
Self-Priming
Yes
Agency Compliance
UL Listed
Max. Flow GPM
20 gpm
Seal Material
Buna-N
Metered
No
Suction Tube Material
Steel
Piston Material
Aluminum
Adapter Material
Aluminum
Nozzle Operation
Manual
Max. Fluid Temp.
150 Degrees F
Compatible Chemicals
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
Discharge Connection Type
FNPT
Includes Discharge Hose
Yes
Pump Connection ID
2 in
Pump Connection OD
2 1/8 in
Power Source
Hand Operated
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Ethyl (Ethanol), Ethyl Acetate, Fertilizers, Formic Acid, Fresh Water, Fungicides, Heptane, Herbicides, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Hose Cover Material
Neoprene
Nozzle Material
Aluminum
Food Grade
No
Includes Nozzle
Yes
Suction Tube OD
1 in
Includes Bung Adapter
Yes
Includes Spout
No
Runs Dry
Yes
Suction Tube ID
1 in
For Container Type
Drum
Max. Head Pressure
50 psi
Min. Operating Temp.
0 Degrees F
Max. Oil Flow
25 oz per stroke
Max. Head - Pumps
6 ft
Housing Material - Pumps
Aluminum
Adapter Connection Type
MNPT
Max. Outlet Pressure
50 psi
Mount Type
Bung

Description

The FILL-RITE FR152 is a hand-operated drum pump with lever action for transferring fuel and other compatible fluids from 55 gallon drums. It mounts to a 2 in bung and includes an 8 ft discharge hose, nozzle spout, bung adapter, and suction tube. The pump uses double piston action and delivers up to 20 gallons per 100 strokes, with no electrical power required.

Key Features of the FILL-RITE FR152 Hand Operated Drum Pump:

  • Lever Action Pump: Hand-operated design for fluid transfer without electricity.
  • Flow Rate: Delivers up to 20 gallons per 100 strokes.
  • Drum Fit: Designed for 55 gallon drums with a 2 in bung connection.
  • Construction: Aluminum housing, adapter, piston, and nozzle with steel suction tube and Buna-N seals.
  • Hose Assembly: Includes a 5/8 in x 8 ft discharge hose with static ground wire.
  • Suction Tube: Adjustable steel suction tube measures 20 in to 34 1/2 in.
  • Connection Sizes: 1 in inlet and 3/4 in spout connection size.
  • Performance Features: Self-priming, runs dry, and flow direction can be reversed.
  • Pressure and Head: Maximum outlet pressure of 50 psi and maximum head of 6 ft.
  • Temperature Range: For use with fluids from 0 to 150 degrees F.
  • Compatible Fluids: Suitable for use with gasoline, diesel fuel, kerosene, biodiesel, antifreeze, hydraulic oils, motor oils, automatic transmission fluid, brake fluid, glycerin, ethylene glycol, E85, and Stoddard solvent.
  • UL Listed: Agency compliance is UL Listed.
