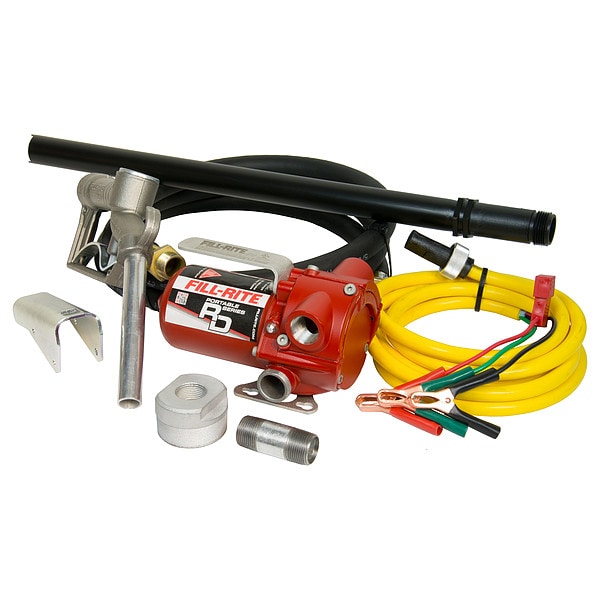

Fill-Rite DC Pump, 10ft. Power Cord, Rotary Vane RD1212NP

DC Pump, 10ft. Power Cord, Rotary Vane (Discontinued)

  • Mfr # RD1212NP
  • Zoro # G1881385
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RD1212NP
Zoro #
G1881385
UPC #
089404225073
Country of Origin
United States

Dimensions

Inlet Size
3/4 in NPT
Pump Mount Size
2 in
Outlet Size
3/4 in NPT
Overall Height
7 1/4 in
Overall Width
17 13/16 in
Suction Tube Length
41 in
Overall Length
17 7/8 in
Manufacturers Warranty Length
2 yr
Power Cord Length
10 ft
Hose Length
8 ft
Hose Dia.
3/4 in
Hose Outside Dia.
3/4 in
Cord Length
10 ft
For Container Size
100 gal

Details

Item
DC Pump
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Seal Material
Buna-N
Duty Cycle
30 Minutes On/30 Minutes Off
Transfer Pump Application
Construction, Emergency Response, Farming, Generators, Marine, Refueling Fleet Vehicles
Housing Material
Aluminum
Pressure Range
12 psi to 15 psi
Features
Portable, Handheld, Gasoline, Kerosene, Ethanol Blends (up to 15%), Methanol Blends (up to 15%), Configurable Inlet and Outlet Flanges, Bypass-Less Construccion, Thermal Proteccion, Quick-Disconnected Power Cable, Self Priming, Portable
Max. Viscosity
140 SUS
HP
1/5
Bearing Type
Sealed Ball
Pump Design
Rotary Vane
Nozzle Material
Aluminum
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Voltage
12V DC
Bypass Valve
No
Self-Priming
Yes
Seal Type
Lip
Includes
Battery, Cable, Discharge Hose, Nozzle
RPM
3900
Nozzle Type
Manual
Metered
No
Standards
UL Listed
GPM
12 gpm
Agency Compliance
cULus
Motor RPM
3,900 RPM
Full Load Amps
14.0 A
Includes Discharge Hose
Yes
Nozzle Fluid Compatibility
Diesel
Compatible Chemicals
Biodiesel, Diesel, E15, Gasoline, Kerosene
Max. Flow Rate
12 gpm
Max. Outlet Pressure
16 psi
Nozzle Operation
Manual
Max. Head - Pumps
3 ft
Motor HP
1/6 hp
Mount Type
Bung
Includes Suction Tube
Yes
Rated Voltage
12V DC
Housing Material - Pumps
Aluminum
Power Source
Electric
Max. Head Pressure
16 psi
Includes Nozzle
Yes
For Media Type
Biodiesel, Diesel, E15, Gasoline, Kerosene

Description

DC Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 12 V DC, Hose Length 8 ft, Suction Tube Length 41 in, Cord Length 10 ft, Nozzle Operation Manual, Power Source Corded Electric, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, E15, Gasoline, Kerosene

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
