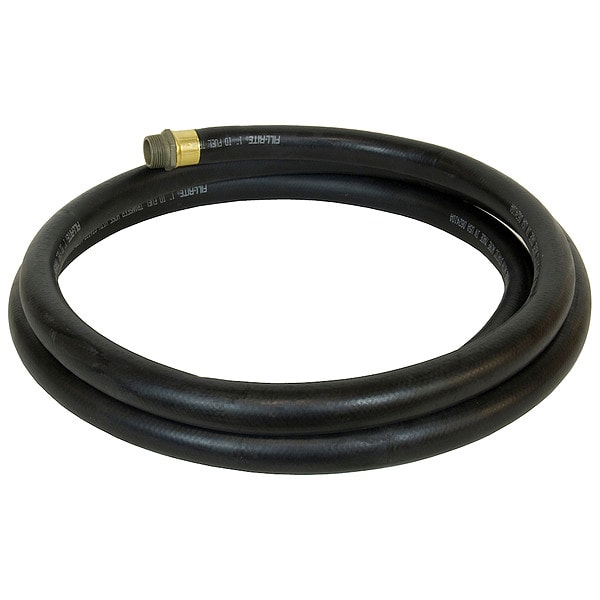

Discharge Hose, 1 in ID, 14 ft L, 1-1/2 in OD

  • Mfr # FRH10014

  • Zoro # G1628067

product price:
$
66.99
/ea

Key Features

Operation
Temperature Rating -22 Degrees to 130 Degrees F
Inlet
1 in NPT
Length
14 ft
Outlet
1 in NPT
Material
Nitrile
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FRH10014
Zoro #
G1628067
UPC #
089404201732
Country of Origin
United States

Dimensions

Length
14 ft
Diameter
1 in
Hose Inside Dia.
1 in
Hose Length
14 ft
Hose Outside Dia.
1 1/2 in
Hose Fitting B Size
1 in
Hose Fitting A Size
1 in
Hose Outside Diameter
1 1/2 in
Hose Inside Diameter
1 in
End 2 Fitting Diameter
1 in
End 1 Fitting Diameter
1 in

Details

Item
Discharge Hose
Operation
Temperature Rating -22 Degrees to 130 Degrees F
Inlet
1 in NPT
Outlet
1 in NPT
Material
Nitrile
Max. Pressure
50 psi
Application
For Refined Petroleum Liquids
Agency Compliance
UL Listed
Hose Fitting B Material
Brass
Hose Tube Material
Nitrile
Hose Cover Material
Neoprene
Max. Working Pressure @ 70 F
50 psi
Hose Fitting A Material
Brass
Hose Fitting A Type
MNPT
Hose Fitting B Type
MNPT
Temp. Range
-40 Degrees to 180 Degrees F
End 2 Fitting Material
Brass
Chemical Compatibility
B20, Biodiesel, Diesel, Gasoline, Heptane, Kerosene, Mineral Spirits, Stoddard Solvent
End 2 Fitting Standard
NPT
End 1 Fitting Material
Brass
Wetted Material
Nitrile
Temperature Range
-40 Degrees to 180 Degrees F
Compatible Pump Type
Fuel Transfer Pumps
End 2 Fitting Gender
Male
End 1 Fitting Standard
NPT
Hose Type
Discharge
Includes
Static Wire
End 1 Fitting Gender
Male
Compatible Manufacturer Part Number

Description

The FILL-RITE FRH10014 is a 1 in x 14 ft fuel hose for refined petroleum liquids. It has a nitrile inner tube and a neoprene cover, with 1 in MNPT brass fittings on both ends. The hose also includes an internal stainless steel ground wire and a 7 in anti-kink spring guard. Maximum working pressure is 50 psi.

Key Features of the FILL-RITE FRH10014 Fuel Hose:

  • Hose Size: 1 in inside diameter and 14 ft length for fuel transfer applications.
  • Tube Material: Nitrile inner tube resists corrosion from fuels.
  • Cover Material: Neoprene outer cover withstands abrasion in outdoor use.
  • Fittings: Brass 1 in MNPT fittings on both ends.
  • Ground Wire: Stainless steel wire runs through the full hose length to help prevent static buildup.
  • Anti-Kink Guard: 7 in internal spring guard helps reduce kinking during operation.
  • Pressure Rating: 50 psi maximum working pressure at 70°F.
  • Temperature Rating: Operation rated from -22°F to 130°F; listed temperature range -40°F to 180°F.
  • Agency Compliance: UL Listed.
